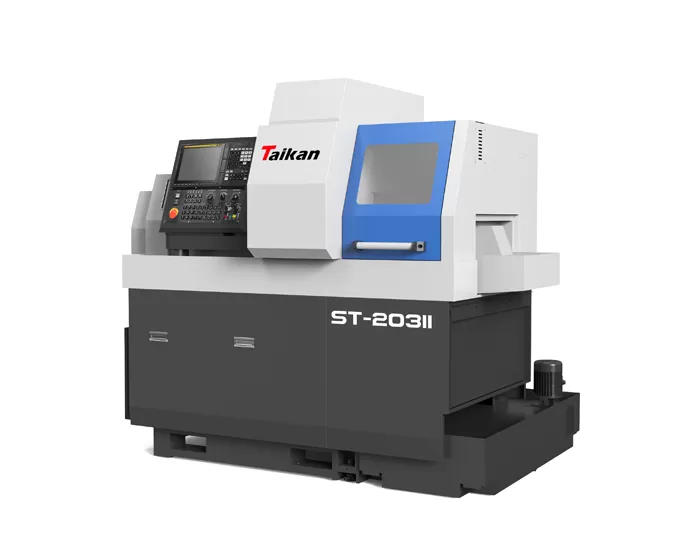

Item | ST-203Ⅱ |
Max. Processing Diameter | Ø20 |
Max. Processing Length | 240mm |
Front Drilling Diameter | Max. Ø10 |
Front Thread Processing | Max. M8 |
Max. Spindle Through Hole Diameter | 23mm |

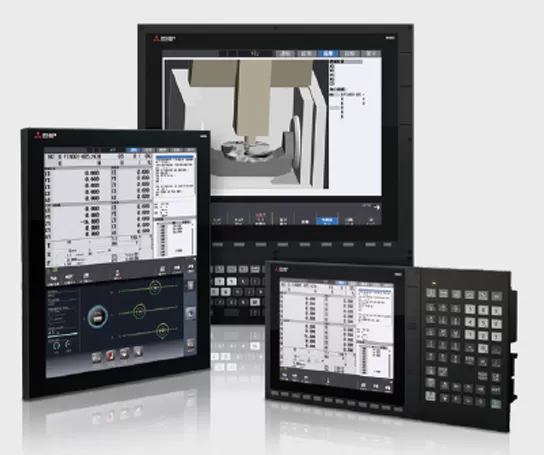

System Device | Mitsubishi E80 |
Spindle Speed | Max. 8000 r/min |
Max. Drilling Diameter for Side Milling | Max. Ø10 (Copper) |
Max. Tapping Diameter for Side Milling | Max. M8 (Copper) |
Max. Speed for Side Milling | Max. 5000r/min |

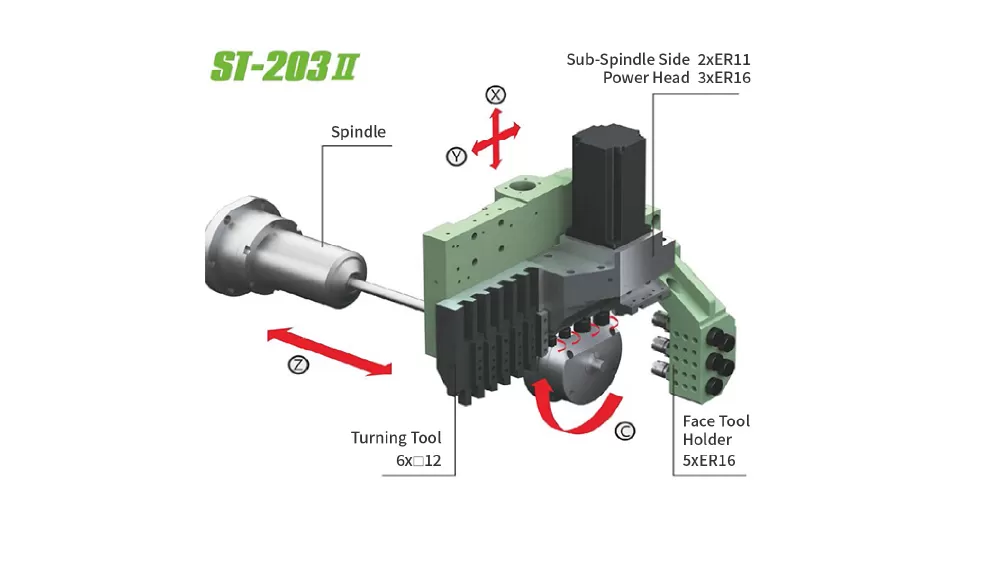

Turning Tool | 5*□12 + 1*□16 |
Side Milling Driven Tool Holder | 2ER11 + 3ER16 (incl. 2 quick-change units) |
End Fixed Tool Holder | 5*ER16 |
Movement Speed | X:20/Y:32/Z:24 m/min |
Spindle Motor Power | 3.7kW/5.5kW |
Side Milling Motor Power | 1.0kW |
Feed Motor Power | 1.0kW (X/Y/Z) |
Total Machine Power | 8kW |
Total Machine Weight | 1800kg |
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
