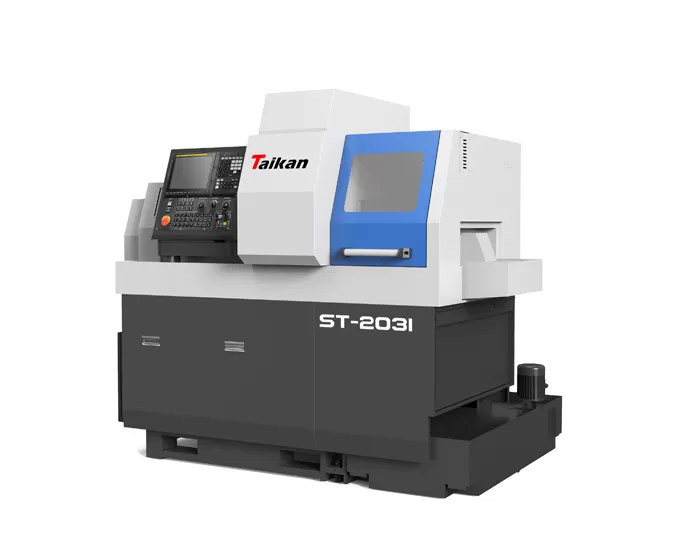

ST-203ⅠHigh-precision CNC Swiss-Type Lathe

CNC Sliting Lathe

Single Spindle, 3 axes


Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

01

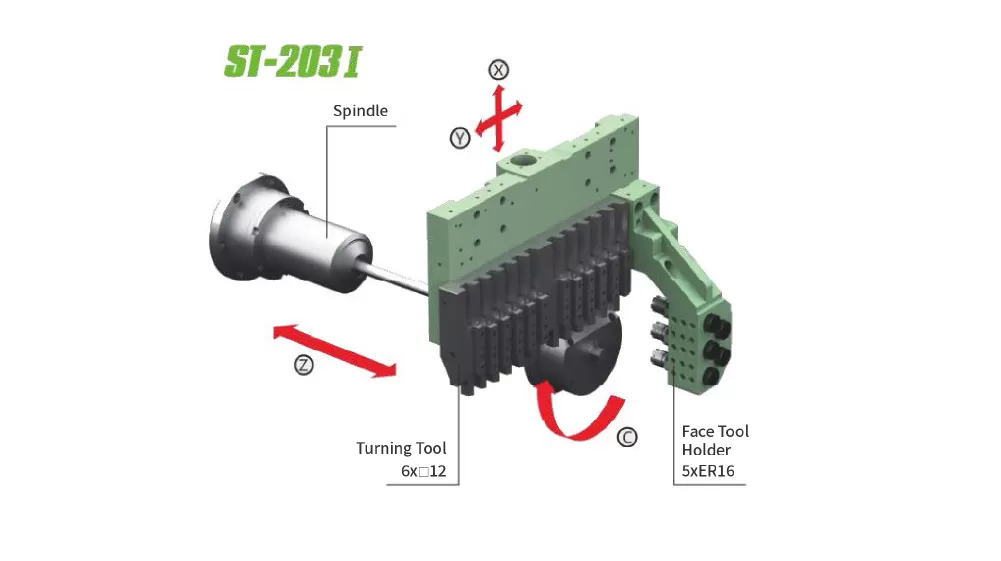

  • Single Spindle, Single System

  • 3 Linear Feed Axes, 32m/min Rapid Traverse Speed

  • Standard Equipment Includes 5 Driven Tool Holders

  • Spindle Without Side Milling Driven Tool Option


02

03

03
01
02
03
01
Single Spindle Automatic Lathe

Workpiece Example 2

Single Spindle Automatic Lathe Machine

Workpiece Example 3

Single Spindle Automatic Lathe Traub Machine

Workpiece Example 4

Single Spindle Lathe Machine

Workpiece Example 5

Single Spindle Lathe

Workpiece Example 1

Single Spindle Automatic Lathe

Workpiece Example 2

Single Spindle Automatic Lathe Machine

Workpiece Example 3

Single Spindle Automatic Lathe Traub Machine

Workpiece Example 4

Single Spindle Lathe Machine

Workpiece Example 5

Single Spindle Lathe

Workpiece Example 1

Single Spindle Automatic Lathe

Workpiece Example 2

Single Spindle Automatic Lathe Machine

Workpiece Example 3

Single Spindle Automatic Lathe Traub Machine

Workpiece Example 4


Item

ST-203Ⅰ

Max. Processing Diameter

Ø20

Max. Processing Length

240 mm

Front Drilling Diameter

Max. Ø10

Front Thread Processing

Max. M8

Spindle Through Hole Diameter

23 mm

System Device

Mitsubishi E80

Spindle Speed

Max. 8000 r/min

Turning Tool

5×□12 + 1×□16

End Fixed Tool Holder

5×ER16

Movement Speed

32 m/min (Y), 20 m/min (X), 24 m/min (Z)

Spindle Motor Power

3.7 kW / 5.5 kW

Feed Motor Power

1.0 kW (X/Y/Z)

Total Machine Power

8 kW

Total Machine Weight

1800 kg



The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
