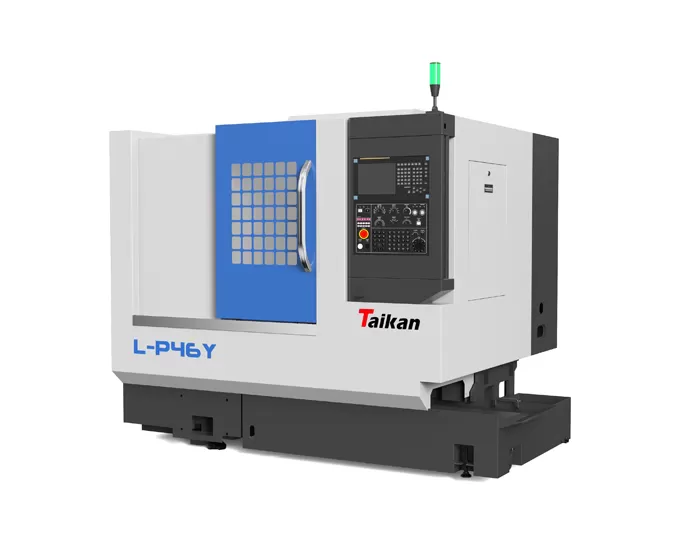

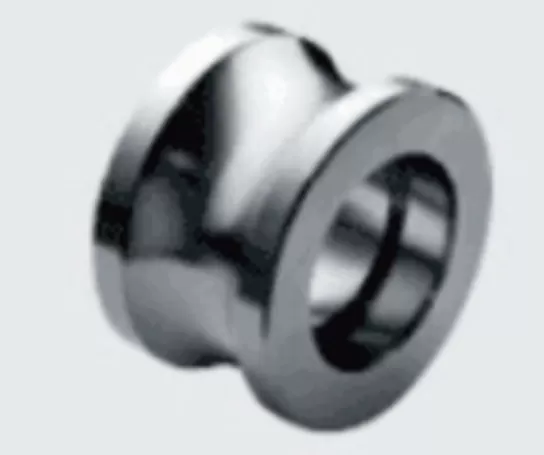

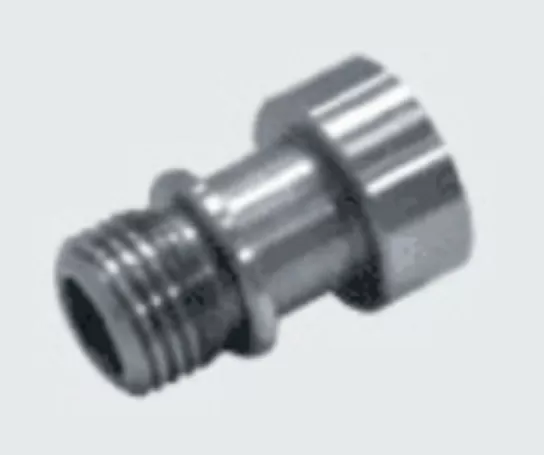

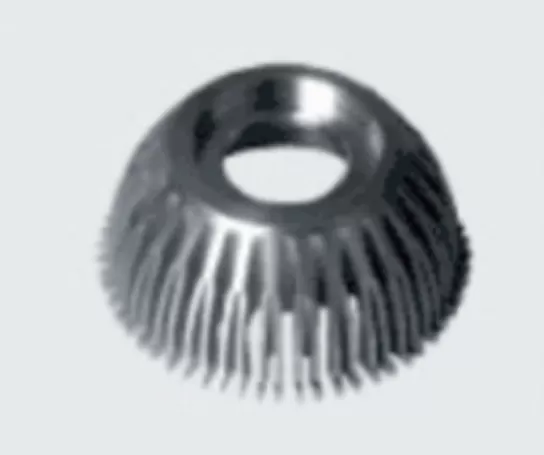

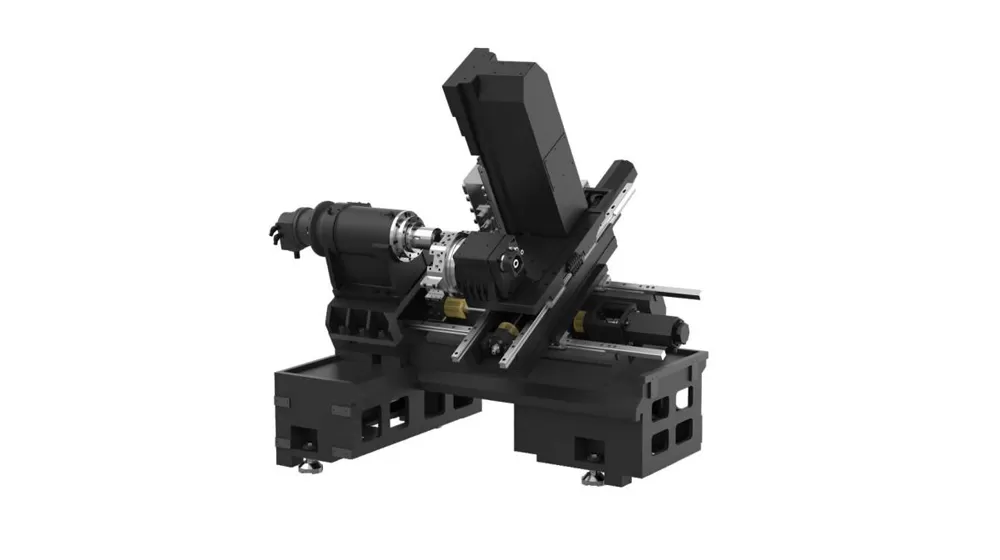

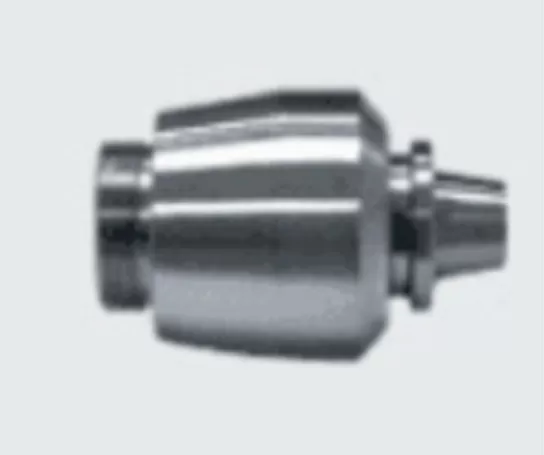

L-P46Y High-precision CNC Horizontal Turning (Milling) Lathe

Machining range

Max. swing diameter on the bed

mm

φ500

Machining diameter (disc type)

mm

Φ300

Machining diameter on cutter

mm

Φ160

Machining length

mm

350

Travel

X-axis travel

mm

550

X-axis motor power/stall torque

kW/Nm

1.8/11

Z-axis travel

mm

450

Z-axis motor power/stall torque

kW/Nm

1.8/11

Y-axis travel

mm

210

Y-axis motor power/stall torque

kW/Nm

1.2/7

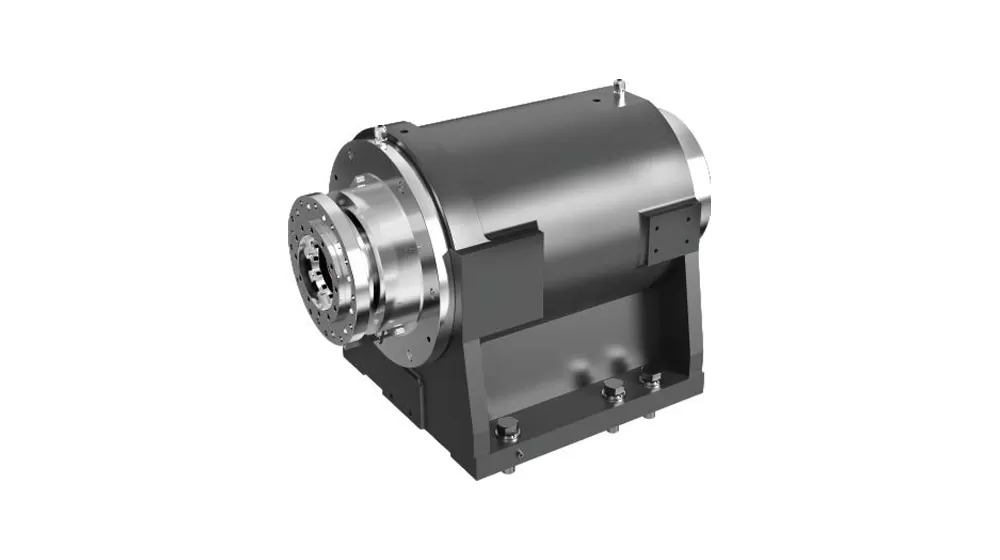

Mechanical spindle

Output power (S1/S6)

kW

7.5/11

Spindle end form

A2-5

Spindle speed

r/min

0-6000

Spindle through hole diameter

mm

φ56

Diameter of tie rod through hole

mm

φ46

Collet

Hollow collet

inch

6

Motor power

Spindle motor rated/continuous half hour

kw

7.5/11

X-axis motor

kw

1.8

Y-axis motor

kw

1.2

Z-axis motor

kw

1.8

Tool change motor

kw

0.75

Hydraulic motor

kw

0.75

Coolant pump motor

kw

0.45

Speed

Rapid traverse speed (X-axis)

m/min

30

Rapid traverse speed (Z-axis)

m/min

30

Rapid traverse speed (Y-axis)

m/min

20

Cutting feed rate

mm/min

1~8000

Tool holder

Tool holder form

Servo tool holder

Tool capacity

T

8

External circular tool size

mm

20×20

Max. boring tool diameter

mm

Φ25

Turret center height

mm

63

4+4 power head

Chuck specifications

ER25

A/B axis (4+4 dual motor)

kw

1.2/1.2

A/B axis (4+4 dual motor)

rpm

0-3000

Number of A-axis power tools

-

4×ER25

Number of B-axis power tools

-

4×ER25

Machine tool accuracy

Positioning accuracy (X-axis)

mm

0.006

Positioning accuracy (Z-axis)

mm

0.006

Positioning accuracy (Y-axis)

mm

0.006

Repeated positioning accuracy (X-axis)

mm

0.006

Repeated positioning accuracy (Z-axis)

mm

0.006

Repeated positioning accuracy (Y-axis)

mm

0.006

C Axis positioning accuracy

Arc seconds/degree

10/0.003

Others

Oil tank

L

60

Water tank

L

100

Machine size (length × width × height)

mm

2200×2200×2300

Machine weight (approximate weight)

kg

3100
