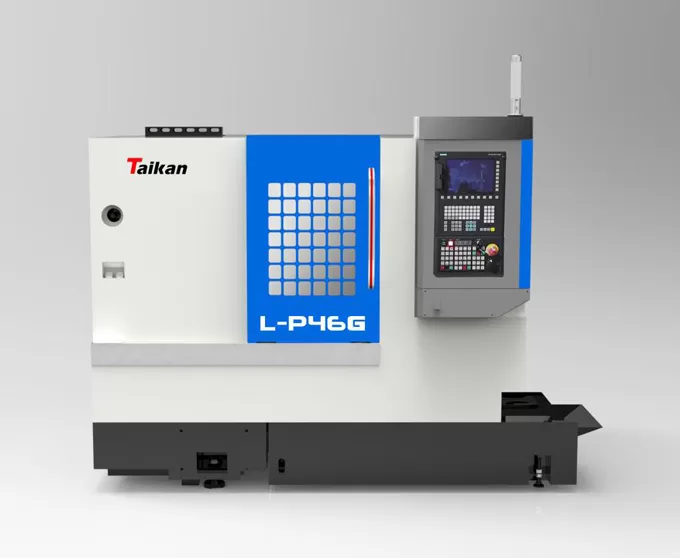

L-P46G High-precision CNC Gang Tools Lathe

T-type gang tool with versatile tool arrangement combinations.


Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

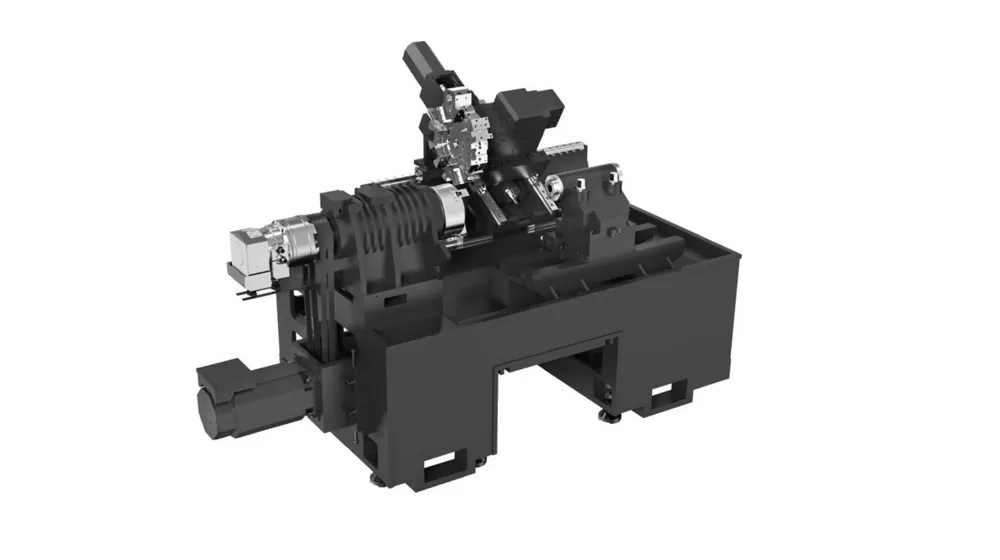

Overall

The CNC lathe adopts a box-type bed structure, high-strength HT300 cast iron, dense structure, good strength, appropriate hardness, low friction coefficient, and self-lubricating property. The base bed has an integral box structure, which greatly enhances the overall rigidity and stability of the machine tool, and has the function of absorbing vibration, reducing tool wear and improving workpiece quality.

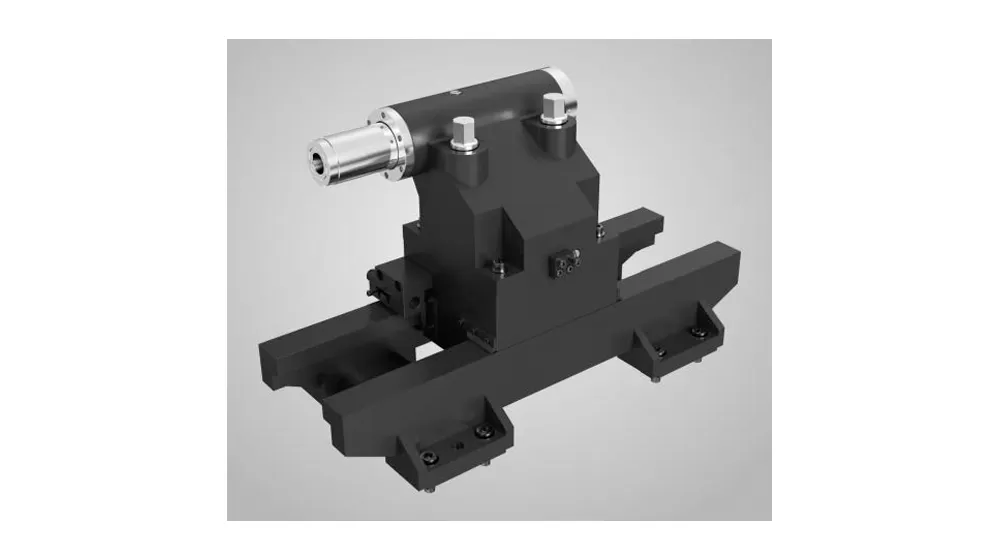

Hydraulic Sleeve Tailstock

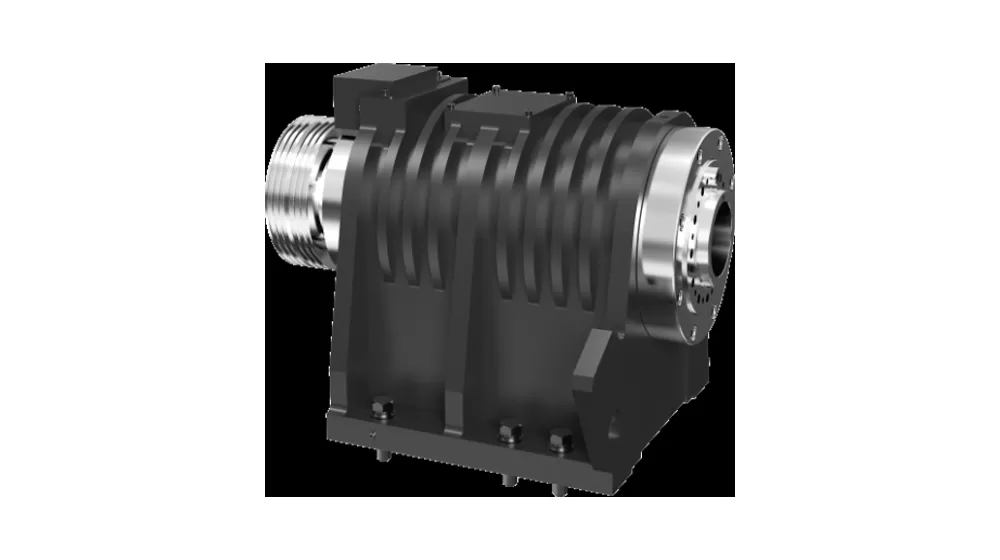

Spindle

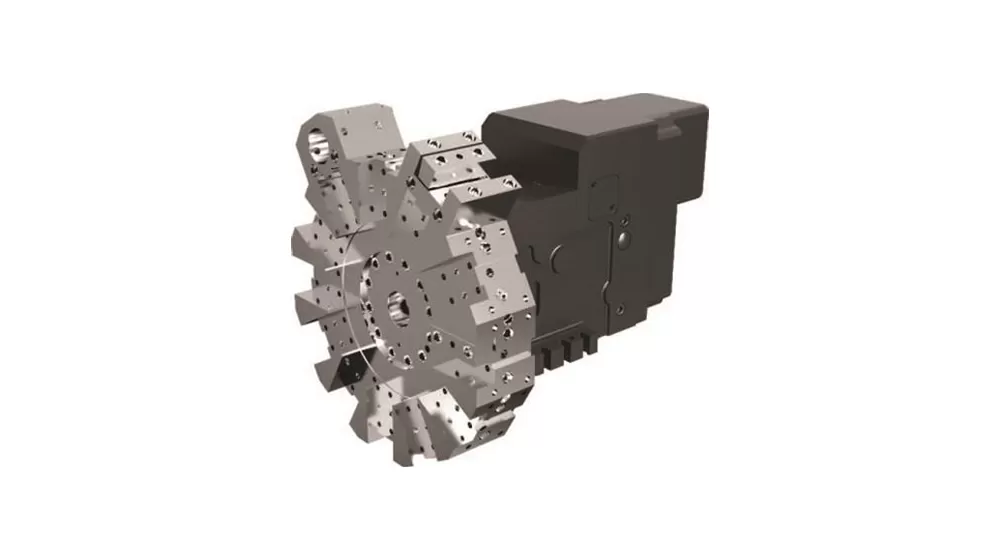

Tool

Tool
Overall
Hydraulic Sleeve Tailstock
Spindle
Tool
Overall

This lathe can be widely used in instruments, meters, light industry, electronics, medical equipment, film machinery and other industries for processing single pieces, small batches and large batches. It is especially suitable for processing small non-ferrous metal parts and shafts and discs with complex shapes.


CNC Lathe

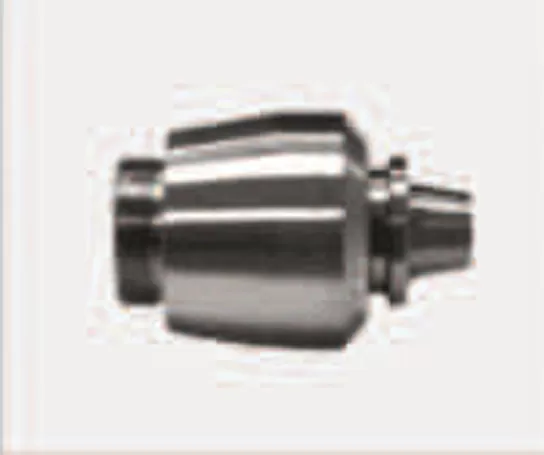

Workpiece Example 1

CNC Lathe Machining Center

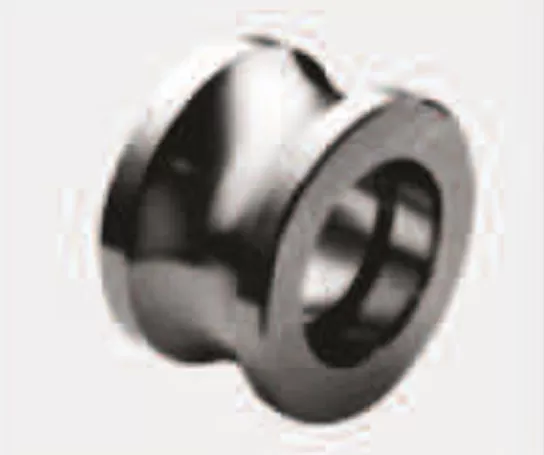

Workpiece Example 2

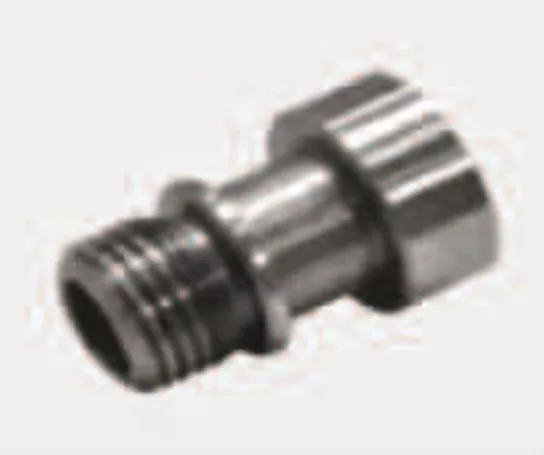

CNC Lathe Machine

Workpiece Example 3

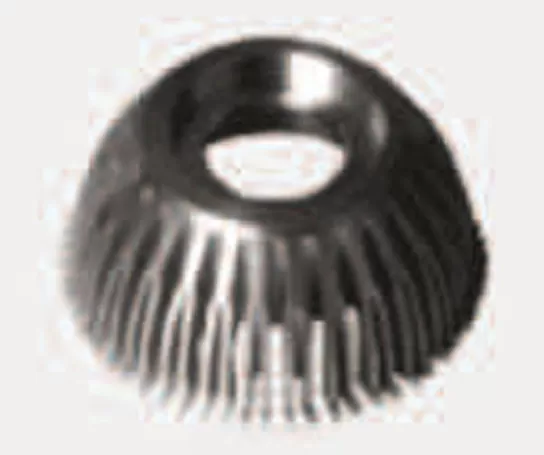

CNC Lathe Machine for Sale

Workpiece Example 4

CNC Lathe

Workpiece Example 1

CNC Lathe Machining Center

Workpiece Example 2

CNC Lathe Machine

Workpiece Example 3

CNC Lathe Machine for Sale

Workpiece Example 4

CNC Lathe

Workpiece Example 1

CNC Lathe Machining Center

Workpiece Example 2

CNC Lathe Machine

Workpiece Example 3

CNC Lathe Machine for Sale

Workpiece Example 4

Name

Unit

L-P46G

Remarks

Machining range

Max. swing diameter on the bed slide

mm

Φ420


Max. machining length

mm

330


Machining diameter (disc type)

mm

Φ300


Machining diameter on the cutter

mm

Φ125


Travel

X-axis travel

mm

900


X-axis motor power/stall torque

kW/Nm

1.2/7


Z-axis travel

mm

330


Z-axis motor power/stall torque

kW/Nm

1.2/7


Spindle

Output power (S1/S2)

kW

5.5/7.5


Spindle end type


A2-5


Spindle speed

r/min

0-6000


Spindle through hole diameter/bar diameter

mm

Φ56/Φ46


Fixture

Hollow collet

inch

6


Speed

Rapid traverse speed (X axis)

m/min

30


Rapid traverse speed (Z axis)

m/min

30


Cutting feed rate

mm/min

/


Tool holder

Tool holder type


full gang tool


Quantity

PCS

7


Cutter body size

mm

20´20


Max. boring tool diameter

mm

20


Accuracy

Positioning accuracy (X axis)

mm

0.003


Positioning accuracy (Z axis)

mm

0.003


Repeatability ((X axis)

mm

0.002


Repeatability ( (Z axis)

mm

0.002


Othes

Equipment capacity

kVA

10


Coolant tank capacity

L

100


Machine size

mm

2100´1600´1950


Weight (approx.)

kg

2650



The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.

Mitsubishi

Mitsubishi

FANUC

FANUC

Siemens

Siemens

SYNTEC

SYNTEC

Previous:
Next:

Related Products

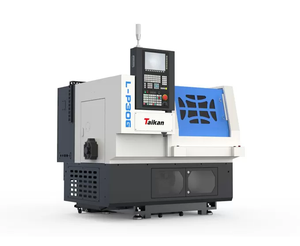

L-P30G High-precision CNC Gang Tools Lathe
L-P30G High-precision CNC Gang Tools Lathe

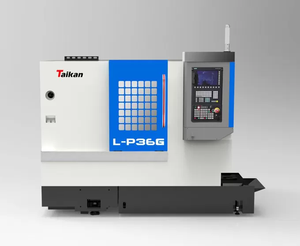

L-P36G High-precision CNC Gang Tools Lathe
