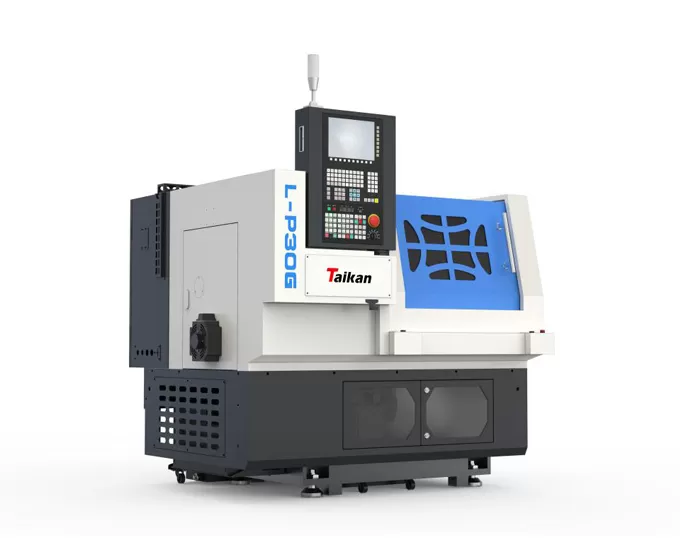

T-type gang tool with versatile tool arrangement combinations.

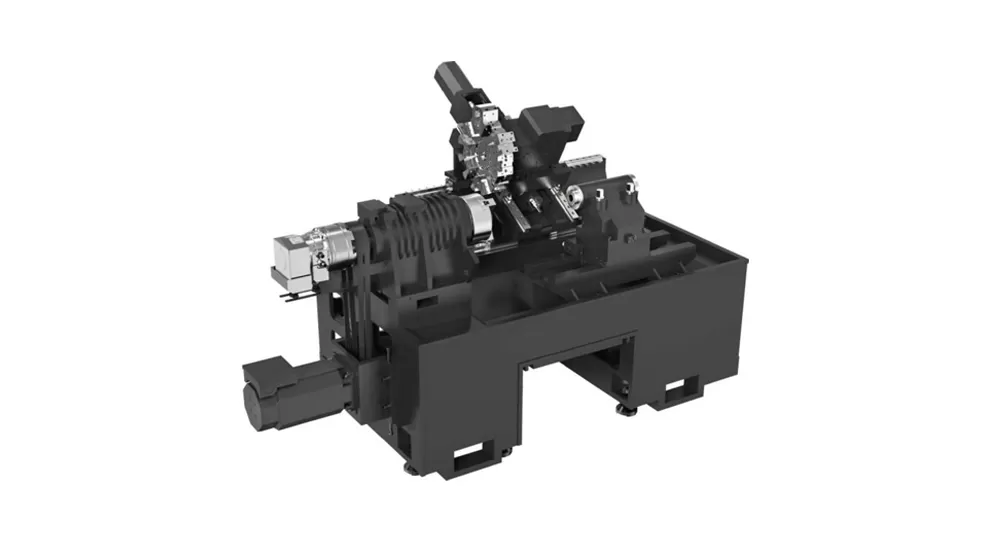

Overall

This machine tool has an integrated mechanical, electrical and hydraulic layout, adopts a fully enclosed protective cover, the protective door opens to the left, and the CNC operation panel is located on the top of the fixed protective cover, which is easy to operate.
The large basic parts are all made of high-quality resin sand molding and high-strength cast iron materials, which gives the machine tool high rigidity and stable precision.

Hydraulic Sleeve Tailstock

Spindle

Tool

Name		Unit	L-P30G	Remarks
Machining range	Max. swing diameter on the bed slide	mm	φ240
	Max. swing diameter on the tool base	mm	Φ120
	Max. turning length	mm	100
	Max. turning diameter	mm	φ100
	Max. clamping diameter of spring chuck	mm	φ30
Travel	X-axis travel	mm	280
	X-axis motor power/stall torque	kw/Nm	1/3.2
	Z-axis travel	mm	180
	Z-axis motor power/stall torque	kw/Nm	1/10
Spindle	Spindle clamping type	kw	Type 20 collet chuck
	Spindle head type		Non-standard
	Spindle through hole diameter		φ36
	Spindle maximum speed		0-6000
	Spindle motor torque (rated/maximum	r/min	17.7/26.5
	Spindle motor (S1/S2)	mm	3.7/5.5
Fixture	Spring chuck	inch	Φ30
Speed	Rapid traverse speed (X axis)	m/min	18
	Rapid traverse speed (Z axis)	m/min	18
	Cutting feed speed	mm/min
Tool holder	Tool holder type		Gang tool
	Tool indexing time	Seconds/bit	/
	Tool body size	mm	16´16
	Max. boring tool diameter	mm	25
Accuracy	Positioning accuracy (X axis)	mm	＜0.01
	Positioning accuracy (Z axis)	mm	＜0.01
	Repeatability ((X axis)	mm	0.002
	Repeatability ( (Z axis)	mm	0.002
Other	Equipment capacity	kVA	6
	Coolant tank capacity	L	50
	Machine size	mm	1275×1408×1532	Manual chip removal coolant tank
	Weight (approx.)	kg	Approx. 1100
