CNC Horizontal turning(milling) compound with Y axis

Powerful technology, one machine with multiple functions, multiple varieties, small batches

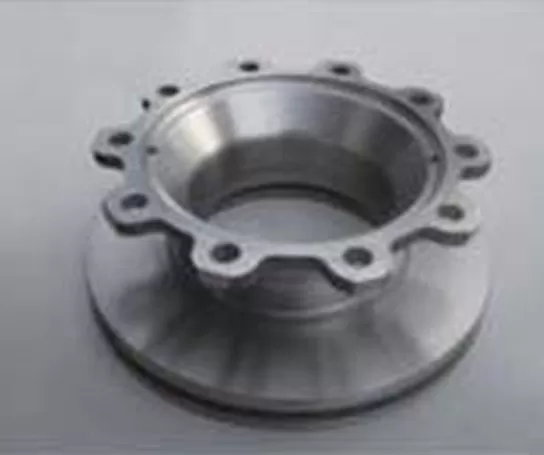

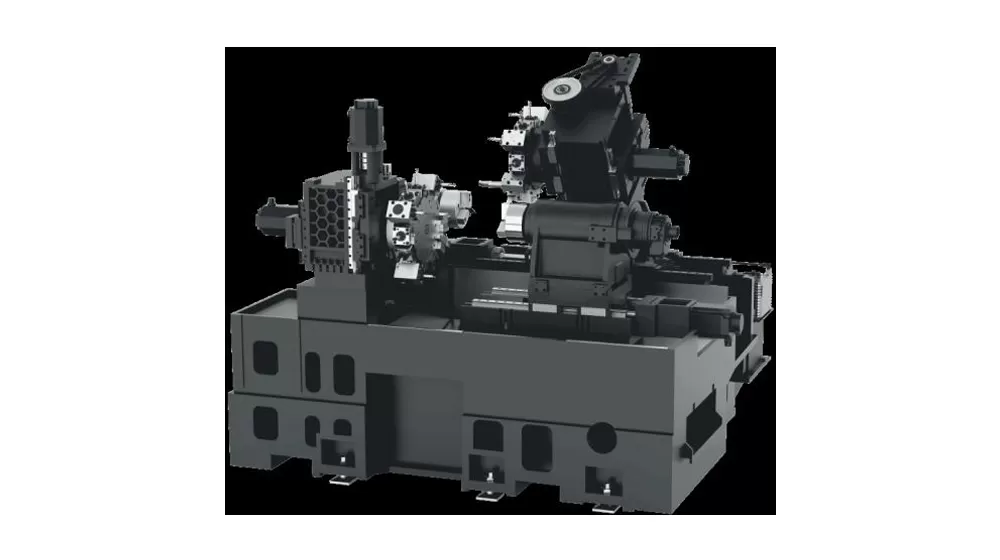

Overall

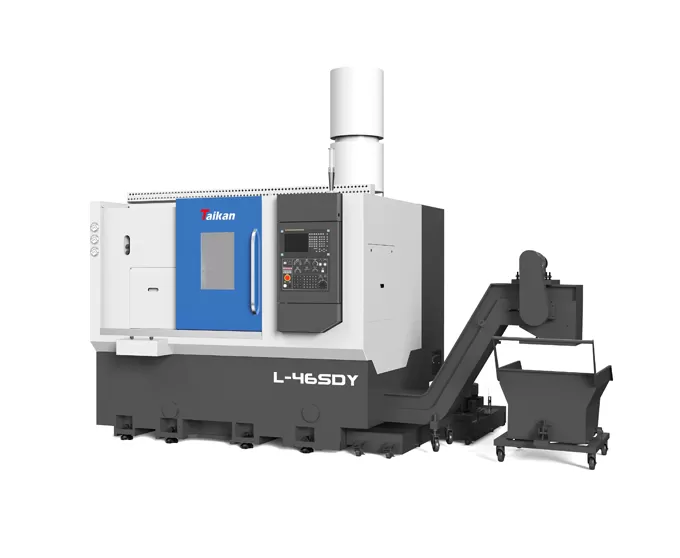

Dual-spindle and dual-turret CNC turning and milling machine tool
Fully enclosed protection, single left sliding door, optional automatic discharge device, independent chip collection water tank, automatic chip conveyor, good chip removal performance

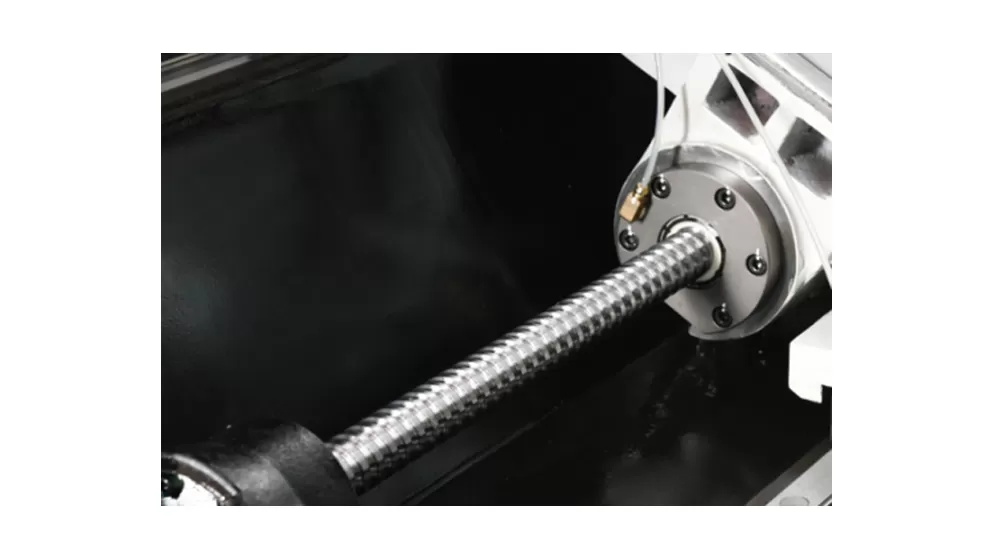

Guide Rail

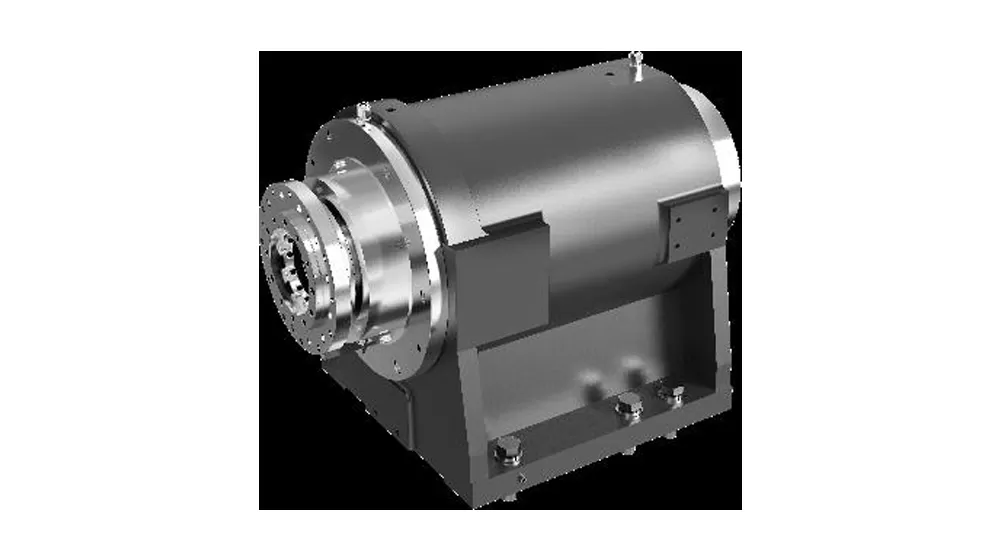

Spindle

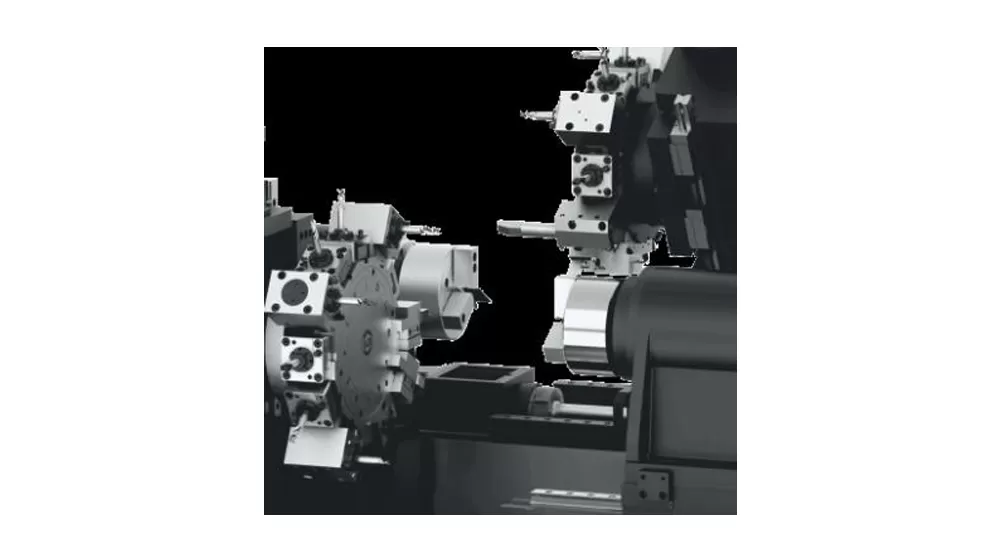

Tool

Item		Unit	L-46SDY
Machining range	Max. swing diameter on the bed	mm	Φ570
	Max. turning diameter on the saddle	mm	Φ320
	Max. turning diameter	mm	Φ130
	Max. turning length	mm	130
Travel	X1, X2 axis travel	mm	200、300
	Y1 axis travel	mm	±50
	Y1 effective machining travel	mm	±45
	Z1, Z2 axis travel	mm	320、300
Main/Sub-spindle	Chuck size	inch	6"
	Max. speed	rpm	6000
	Basic speed	rpm	2000
	Spindle end type		A2-5
	Spindle through hole size	mm	Φ57
	Motorized spindle power	Kw	15/17.8
	Adjustable bar diameter	mm	Φ45
Milling spindle	Max. speed	rpm	4000
	Drilling capacity	mm	Φ16×1.5
	Tapping capacity	[mm] x	M12x1.75
	Tapping capacity	[mm]	M12x1.75
	Milling spindle motor	KW	2.7
	Turret interface		BMT45
Feed speed	X-axis rapid traverse speed	mm/min	18000
	Z-axis rapid traverse speed	mm/min	18000
	Y-axis rapid traverse speed	mm/min	10000
Motor	Spindle motor	KW	＞11
Motor	Cooling pump motor	KW	0.75
Electricity/Air source	Power supply capacity (continuous fixed rate)	KVA/Kw	64KVA/44.75KW
Electricity/Air source	Air source	L/min	0.5Mpa/100
cooling	Water tank capacity	L	130
Size/weight	Distance from spindle center to ground	mm	1070
	Machine height	mm	2060
	Occupied area (L×W)	mm×mm	2410 (without chip conveyor) × 2210
	Machine weight (approx.)	Kg	5000
