Powerful technology, multiple functions

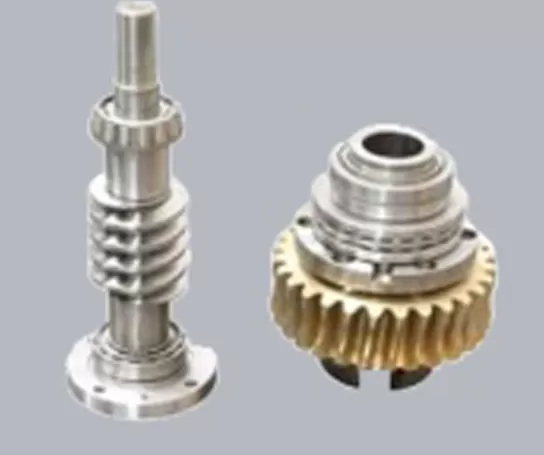

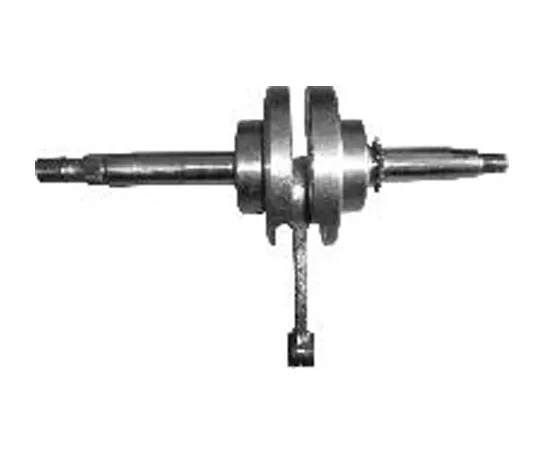

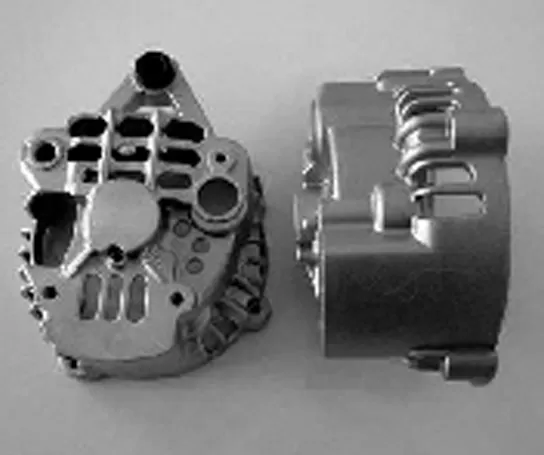

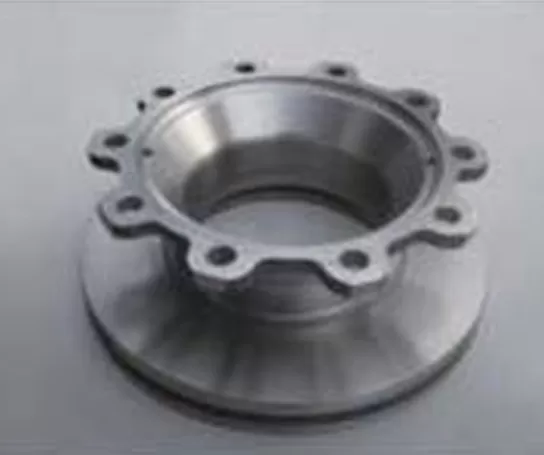

one clamping can complete various processing to meet personalized market manufacturing needs

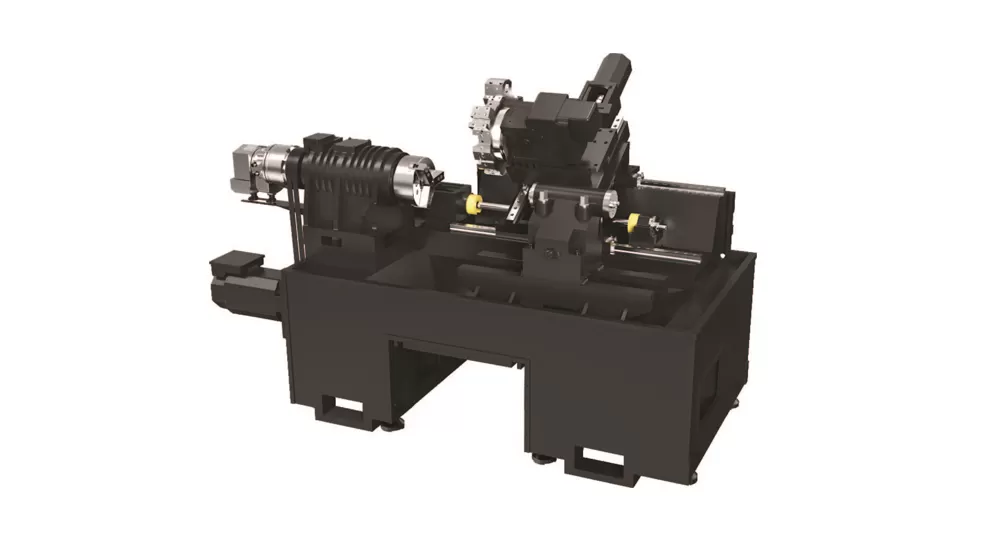

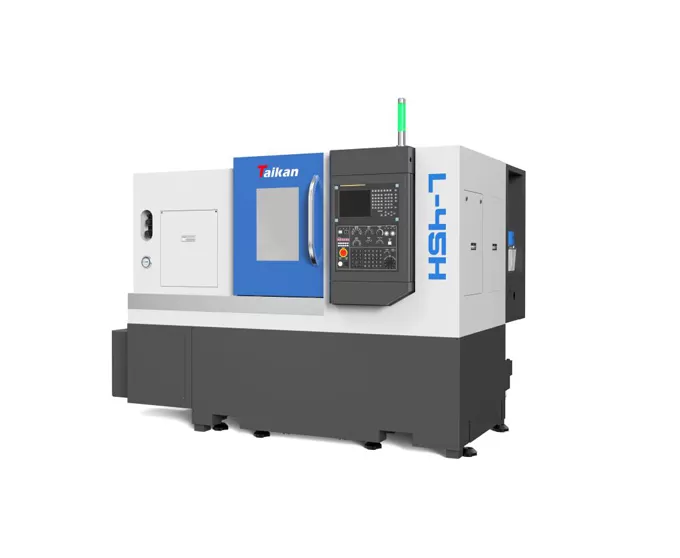

Overall

The 30° overall inclined bed has the advantages of compact structure, high rigidity, smooth chip removal, and convenient operation;
The machine tool is fully enclosed for protection, automatic chip removal, automatic lubrication, and automatic cooling.

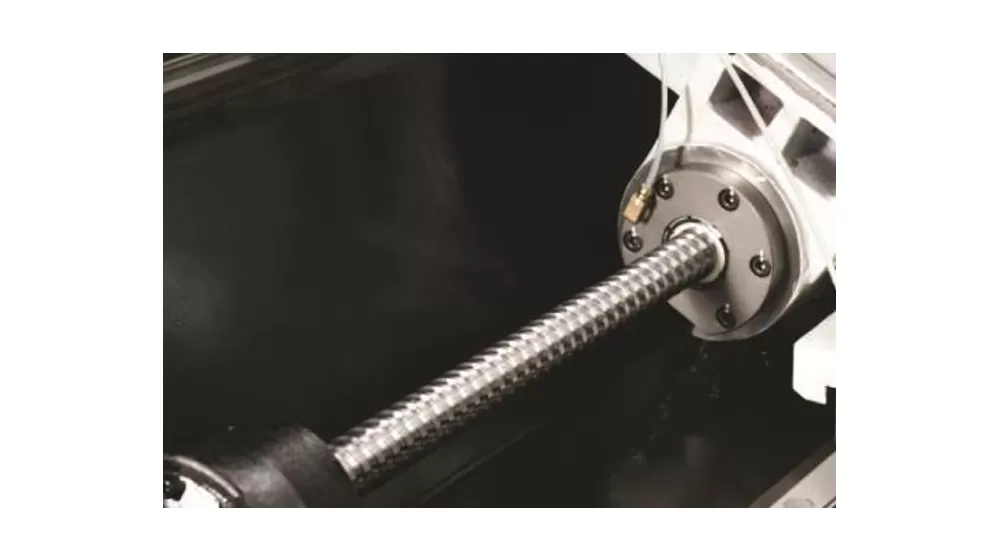

Guide rail

Spindle

Tool

Name		Unit	HL-45H	Remarks
Machining range	Max. swing diameter on the bed	mm	φ600
	Max. machining diameter (shaft/disc)	mm	φ380/φ450
	Max. machining length	mm	450
	Max. bar diameter	mm	φ75
Travel	X-axis travel	mm	240
	X-axis motor power/stall torque	kw/Nm	1.8/11
	Z-axis travel	mm	500
	Z-axis motor power/stall torque	kw/Nm	1.8/11
Spindle	Output power (S1/S6)	kw	15/18.5
	Spindle end form		A2-8
	Spindle speed	r/min	0-2800
	Spindle through hole diameter	mm	φ87
Chuck	Hydraulic three-jaw chuck	inch	10	Hollow
Tailstock	Tailstock sleeve diameter/travel	mm	φ70/100	Optional
Tailstock	Tailstock sleeve taper hole taper	Morse	Morse 4#	Live top
Speed	Rapid traverse speed (X axis)	m/min	30
	Rapid traverse speed (Z axis)	m/min	30
	Cutting feed speed	mm/min	1~8000
Tool holder	Tool capacity	T	12
	Tool indexing time	Seconds/bit	0.5
	Tool body size	mm	25´25
	Max. boring tool diameter	mm	40
Accuracy	Positioning accuracy (X axis)	mm	0.008
	Positioning accuracy (Z axis)	mm	0.01
	Repeatability ((X axis)	mm	0.004
	Repeatability ( (Z axis)	mm	0.004
Other	Equipment capacity	kVA	16
	Coolant tank capacity	L	150
	Machine size	mm	260017901750	Manual chip removal coolant tank
	Weight (approx.)	kg	3600
