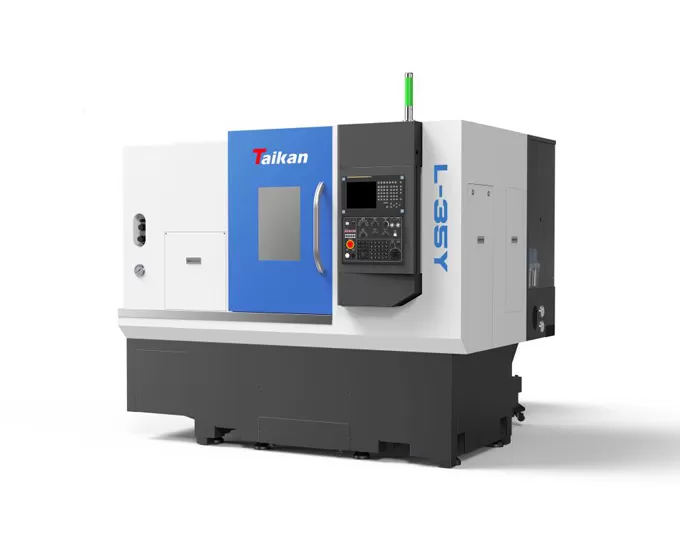

L-35Y High-precision CNC Horizontal Turning (Milling) Lathe

L-35Y High-precision CNC Horizontal Turning (Milling) Lathe

High rigidity
High stability
High load-bearing capacity

Quantity:




Inquire Add to Basket

Characteristic of L-35Y High-precision CNC Horizontal Turning (Milling) Lathe
Application of L-35Y High-precision CNC Horizontal Turning (Milling) Lathe
Specifications of L-35Y High-precision CNC Horizontal Turning (Milling) Lathe
Control & Software

Overall

The machine has an integrated layout of machinery, electricity and hydraulics, and an overall inclined bed, which has the advantages of compact structure, high rigidity, smooth chip removal, and easy operation.

Guide Rail

The guide rails are of the rolling type, and the drive components use high-speed, quiet ball screws, offering fast speeds, low heat generation, and high positioning accuracy.

Spindle

The main transmission system of this machine adopts high-performance, high-torque spindle transmission, with a spindle speed range of 0-4000r/min.

Tool

This machine adopts BMT55 powered turret (including Y-axis), which has fast tool changing speed and high reliability; it is equipped with axial and radial powered tool holders to meet milling needs.

This lathe meets the needs of complex parts processing and is widely used in valves, ships, engineering machinery and other fields, especially favored by automotive parts manufacturers.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Items		Unit	L-35Y	Remarks
Processing range	Max. rotation diameter	mm	φ520
	Max. processing diameter (axis/plate)	mm	φ300/φ350
	Max. processing length	mm	330
	Max. bar diameter	mm	Φ52
Travel	X –axis travel	mm	200
	X –axis motor power/stall torque	kW/Nm	1.8/11
	Y –axis travel	mm	100(±50)
	Y –axis motor power/stall torque	kW/Nm	1.8/11
	Z –axis travel	mm	400
	Z –axis motor power/stall torque	kW/Nm	1.8/11
Spindle	Output power(S1/S6)	kW	11/15
	Spindle end form		A2-6
	Spindle rotary speed	r/min	0-4000
	Hole diameter	mm	Φ63
Chuck	Hydraulic 3-jaw chuck	inch	8	Hollow
Tailstock	Tailstock sleeve diameter/travel	mm	Φ70/100	Optional
Tailstock	Tailstock sleeve taper hole	Morse	Morse 4#	Live center
Speed	X-axis rapid traverse speed	m/min	30
	Y-axis rapid traverse speed	m/min	10
	Z-axis rapid traverse speed	m/min	30
	Cutting Feed Rate	mm/min	1~8000
Tool holder	Tool capacity	T	12
	Milling head motor power/stall torque	kW	2.7/12-46	αi S 12/4000-B
	Milling tool max. speed	r/min	4000
	Milling tool handle specification	mm	BMT55
	Turning tool holder specification	mm	25×25
	Max. boring tool diameter	mm	Φ32
Accuracy	X axis positioning accuracy	mm	0.006
	Y axis positioning accuracy	mm	0.02
	Z axis positioning accuracy	mm	0.006
	C axis positioning accuracy	arc sec	51
	X axis repeatabilitys	mm	0.004
	Y axis repeatability	mm	0.005
	Z axis repeatability	mm	0.004
	C axis repeatability	arc sec	20”
Others	Power Supply Capacity	kVA	30
	Coolant volume	L	250
	Dimension	mm	240017702010
	Total weight	kg	3800

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
