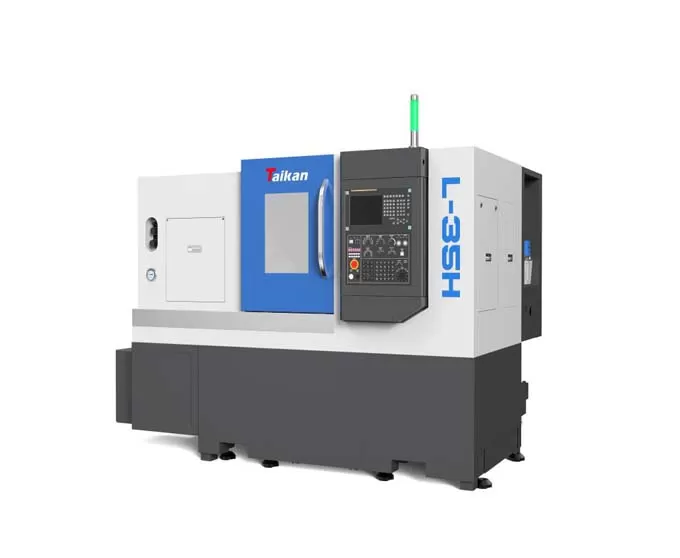

Home » Products » CNC Lathe » L-H Series CNC Horizontal Lathe » HL-35H High-precision CNC Horizontal Lathe

Product Category

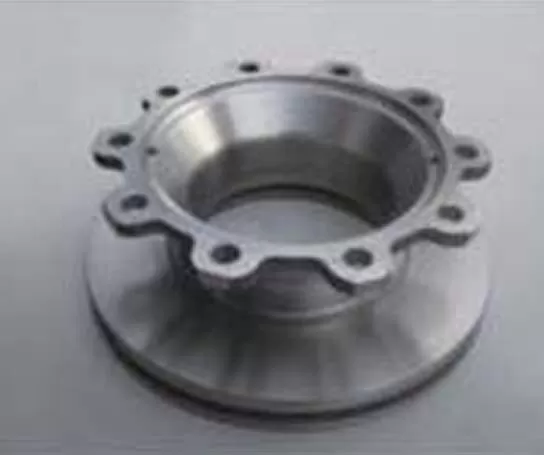

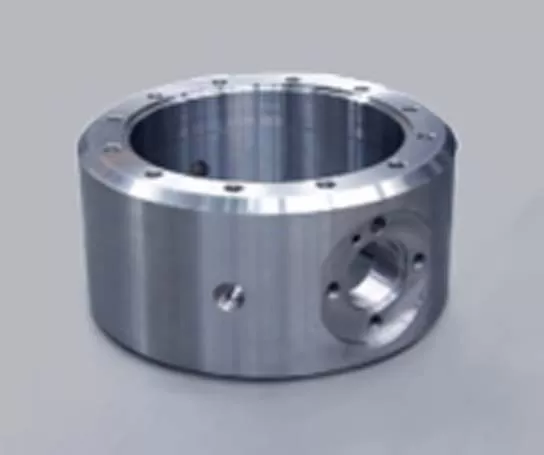

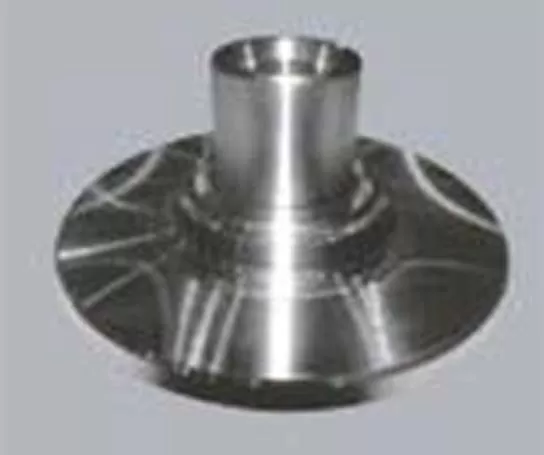

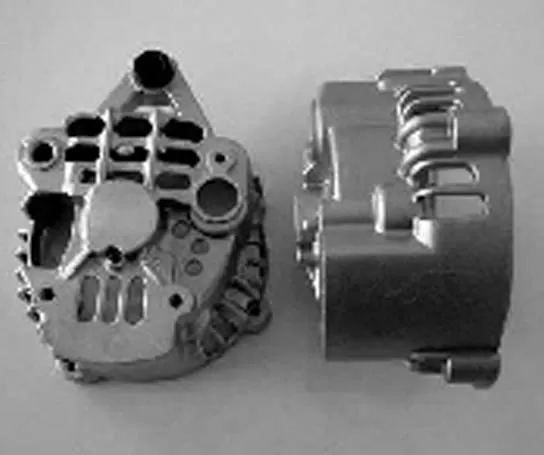

Powerful technology, multiple functions one clamping can complete various processing to meet personalized market manufacturing needs.

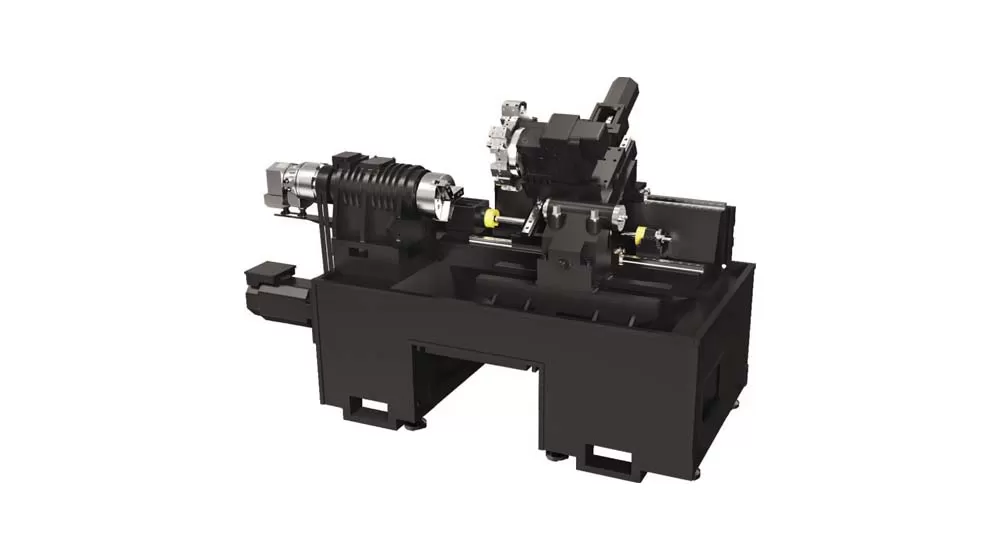

Overall

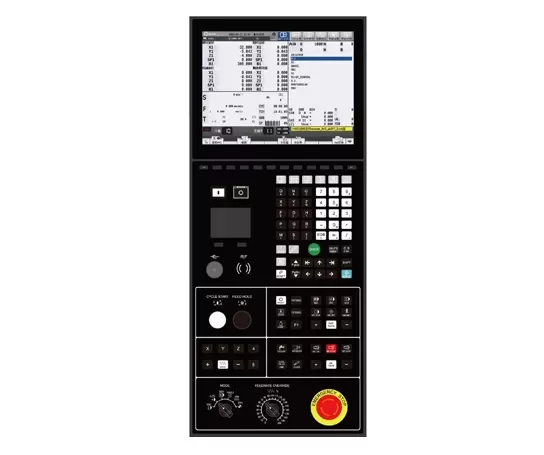

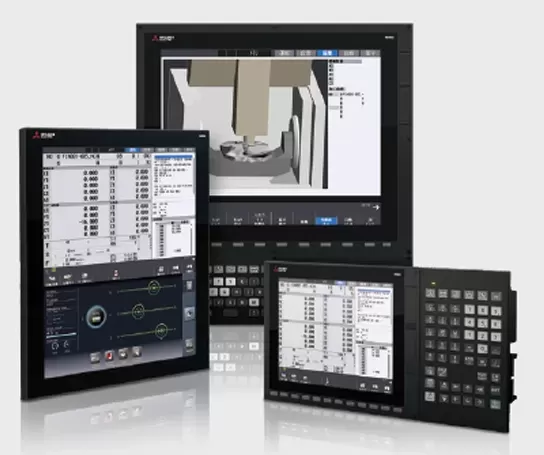

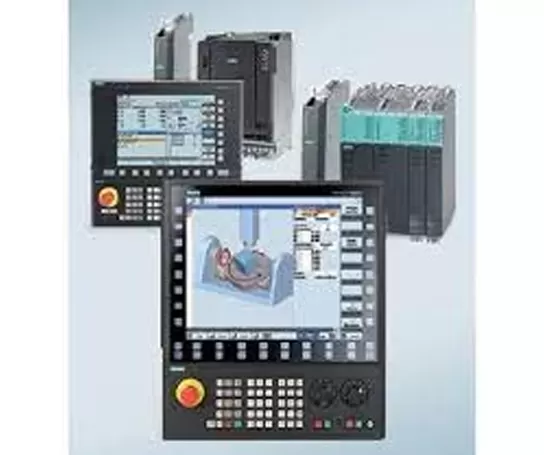

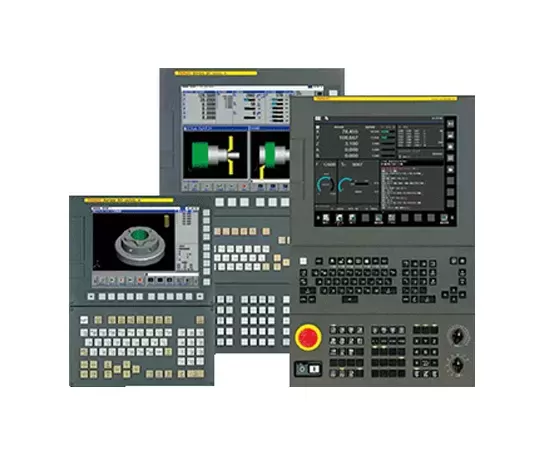

Dual-coordinate two-axis linkage, semi-closed loop CNC machine tool. Integrated mechanical, electrical and hydraulic layout.

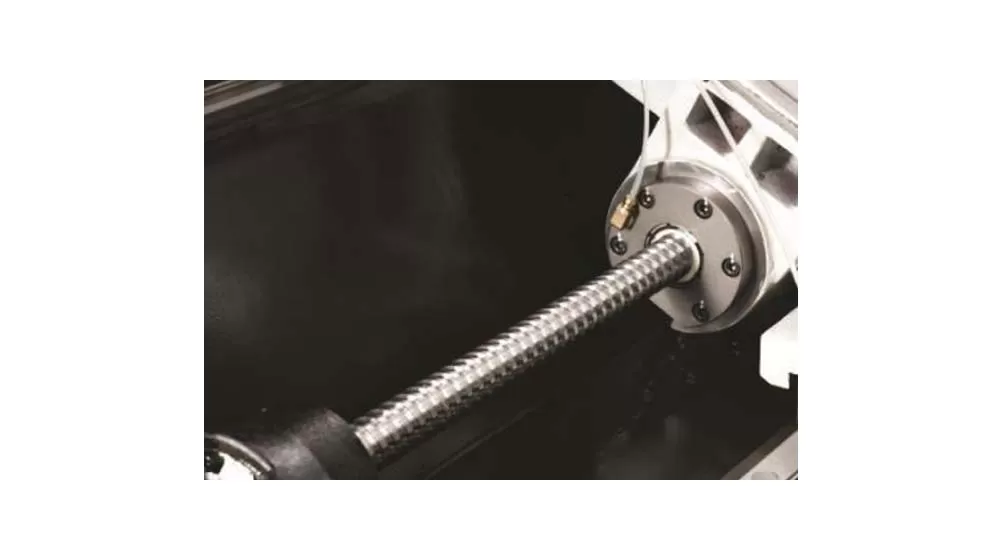

Each servo feed axis uses a high-speed silent ball screw, directly connected by an elastic coupling, with fast moving speed, low noise, high positioning accuracy and repeatability;

Guide rail

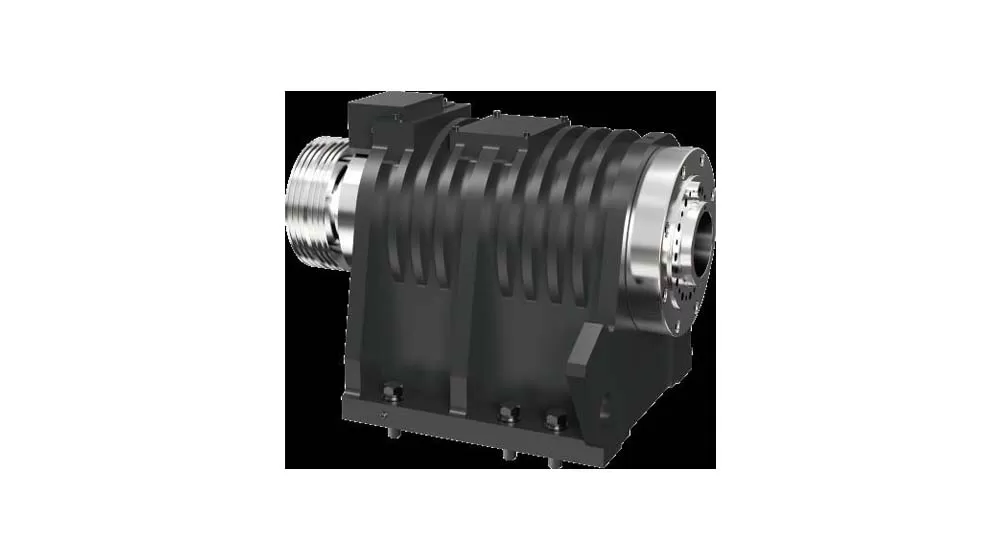

Spindle

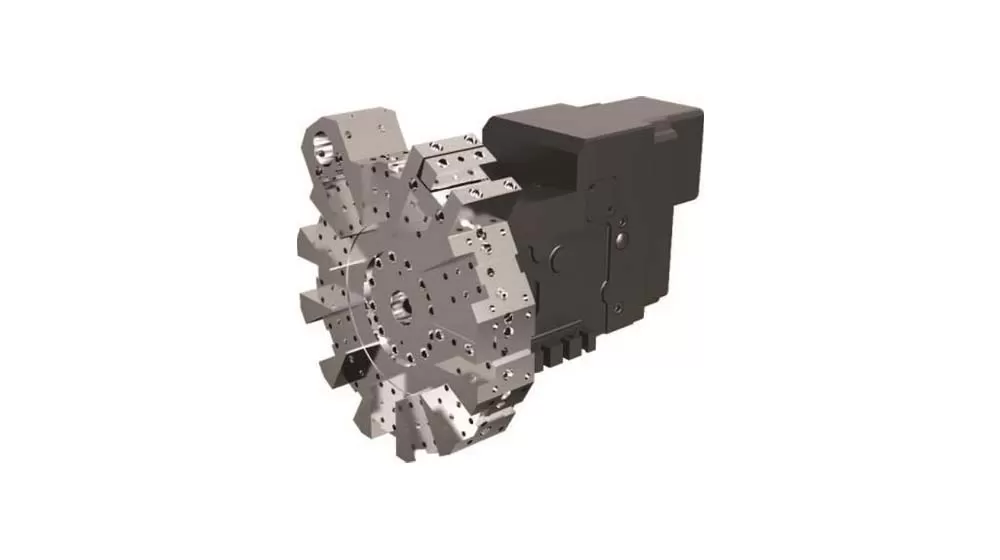

Tool

Name		Unit	HL-35H	Remarks
Machining range	Max. swing diameter on the bed	mm	φ520
	Max. machining diameter (shaft/disc)	mm	φ300/φ350
	Max. machining length	mm	450
	Max. bar diameter	mm	φ52
Travel	X-axis travel	mm	190
	X-axis motor power/stall torque	kw/Nm	1.8/11
	Z-axis travel	mm	500
	Z-axis motor power/stall torque	kw/Nm	1.8/11
Spindle	Output power (S1/S6)	kw	11/15
	Spindle end form		A2-6
	Spindle speed	r/min	0-4000
	Spindle through hole diameter	mm	φ63
Chuck	Hydraulic three-jaw chuck	inch	8	Hollow
Tailstock	Tailstock sleeve diameter/travel	mm	φ70/100	Optional
Tailstock	Tailstock sleeve taper hole taper	Morse	Morse 4#	Live top
Speed	Rapid traverse speed (X axis)	m/min	30
	Rapid traverse speed (Z axis)	m/min	30
	Cutting feed speed	mm/min	1~8000
Tool holder	Tool capacity	T	12
	Tool indexing time	Seconds/bit	0.5
	Tool body size	mm	25*25
	Max. boring tool diameter	mm	40
Accuracy	Positioning accuracy (X axis)	mm	0.006
	Positioning accuracy (Z axis)	mm	0.008
	Repeatability ((X axis)	mm	0.004
	Repeatability ( (Z axis)	mm	0.004
Other	Equipment capacity	kVA	12
	Coolant tank capacity	L	150
	Machine size	mm	250017001680	Manual chip removal coolant tank
	Weight (approx.)	kg	3400
