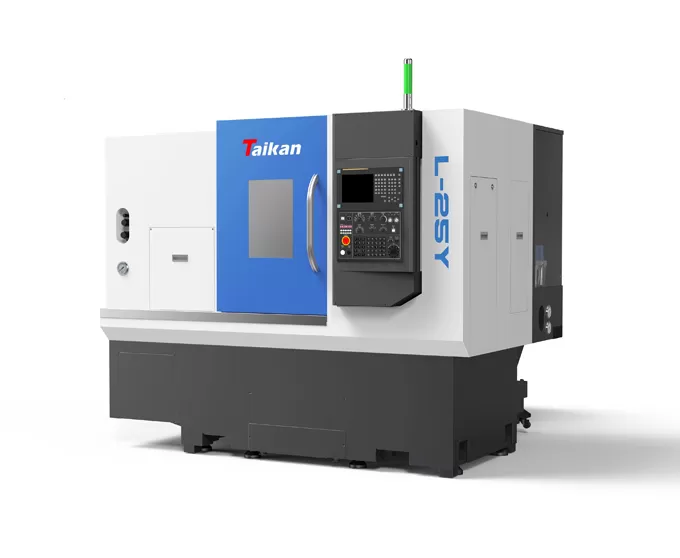

L-25Y High-precision CNC Horizontal Turning (Milling) Lathe

L-25Y High-precision CNC Horizontal Turning (Milling) Lathe

High rigidity, high stability, high load-bearing capacity

Quantity:




Inquire Add to Basket

Characteristic of L-25Y High-precision CNC Horizontal Turning (Milling) Lathe
Application of L-25Y High-precision CNC Horizontal Turning (Milling) Lathe
Specifications of L-25Y High-precision CNC Horizontal Turning (Milling) Lathe
Control & Software

Overall

The machine is fully enclosed for protection, with automatic chip removal, lubrication, and cooling systems. Major components are cast using high-quality resin sand molds and high-strength cast iron materials, providing high rigidity and stable precision for the machine.

Guide Rail

The guide rails are of the rolling type, and the drive components use high-speed, quiet ball screws, offering fast speeds, low heat generation, and high positioning accuracy.

Spindle

The main drive system of this machine tool adopts high-performance, high-speed mechanical spindle belt drive, and the spindle speed range is 0-6000r/min. The front support of the spindle adopts three angular contact ball bearings, and the rear support adopts two angular contact ball bearings to meet the axial and radial cutting force bearing requirements.

Tool

Equipped with a BMT45 powered tool turret, which features fast tool changing speeds and high reliability.

This lathe meets the needs of complex parts processing and is widely used in valves, ships, engineering machinery and other fields, especially favored by automotive parts manufacturers.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Items		Unit	L-25Y	Remarks
Processing range	Max. rotation diameter	mm	φ520
	Max. processing diameter (axis/plate)	mm	φ200/φ250
	Max. processing length	mm	330
	Max. bar diameter	mm	φ52
Travel	X –axis travel	mm	190
	X –axis motor power/stall torque	kW/Nm	1.8/11
	Y –axis travel	mm	100（±50）
	Y –axis motor power/stall torque	kW/Nm	1.8/11
	Z –axis travel	mm	400
	Z –axis motor power/stall torque	kW/Nm	1.8/11
Spindle	Output power(S1/S6)	kW	7.5/11
	Spindle end form		A2-5
	Spindle rotary speed	r/min	0-6000
	Hole diameter	mm	φ67
Chuck	Hydraulic 3-jaw chuck	inch	6	Hollow
Tailstock	Tailstock sleeve diameter/travel	mm	φ70/100	Optional
Tailstock	Tailstock sleeve taper hole	Morse	Morse 4#	Live center
Speed	X-axis rapid traverse speed	m/min	30
	Y-axis rapid traverse speed	m/min	10
	Z-axis rapid traverse speed	m/min	30
	Cutting Feed Rate	mm/min	1-8000
Tool holder	Tool capacity	T	12
	Power head motor power/stall torque	kW	2.7kw/12-46N	αi S 12/4000-B
	Maximum speed of power tool	r/min	4000
	Tool holder specifications	mm	BMT45
	Turning tool holder specifications	mm	25×25
	Maximum boring tool holder diameter	mm	Φ32
Tool holder processing capacity	Maximum milling capacity of power tool		Milling cutter diameter × milling depth × feed φ 20mm × 10mm × 40 (mm/min)	45 Steel
	Maximum drilling capacity of power tool		Drill diameter × feed rate φ14 (mm) × 0.15 (mm/r)	45 Steel
	Maximum tapping capacity of power tool		M10×1.5	45 Steel
Accuracy	X axis positioning accuracy	mm	0.006
	Y axis positioning accuracy	mm	0.02
	Z axis positioning accuracy	mm	0.006
	C axis positioning accuracy	arc sec	51
	X axis repeatabilitys	mm	0.004
	Y axis repeatability	mm	0.005
	Z axis repeatability	mm	0.004
	C axis repeatability	arc sec	20
Others	Power Supply Capacity	kVA	25
	Coolant volume	L	150
	Dimension	mm	250031002100
	Total weight	kg	3800

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
