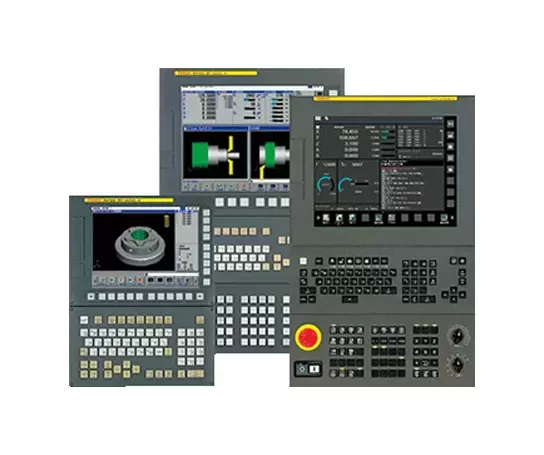

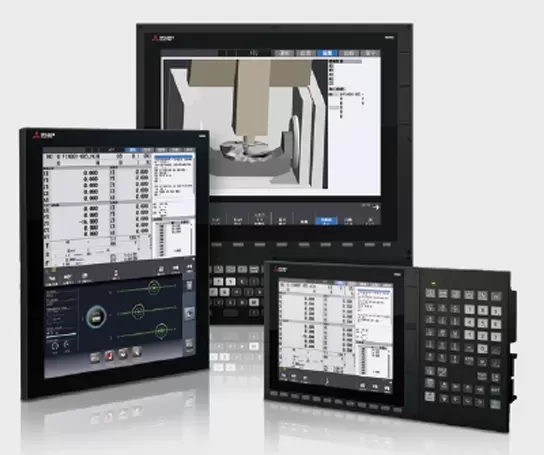

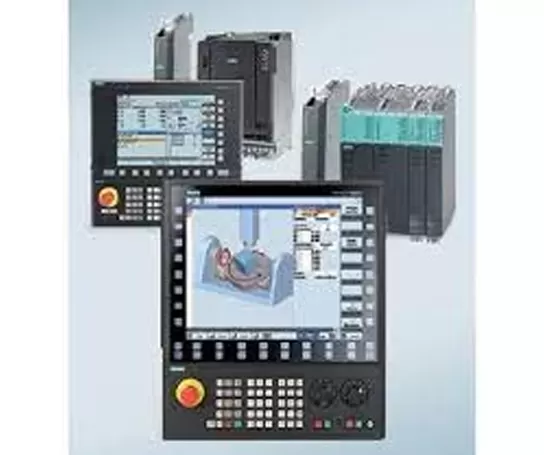

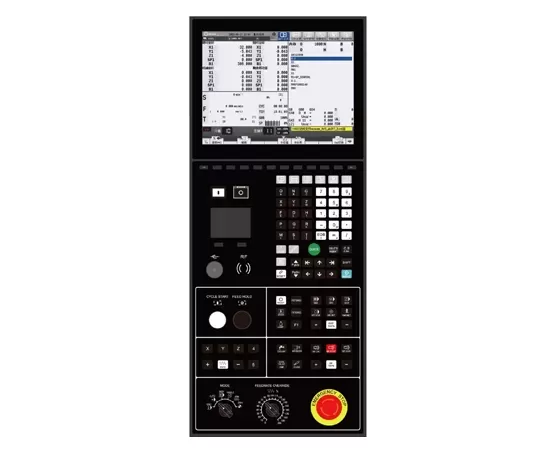

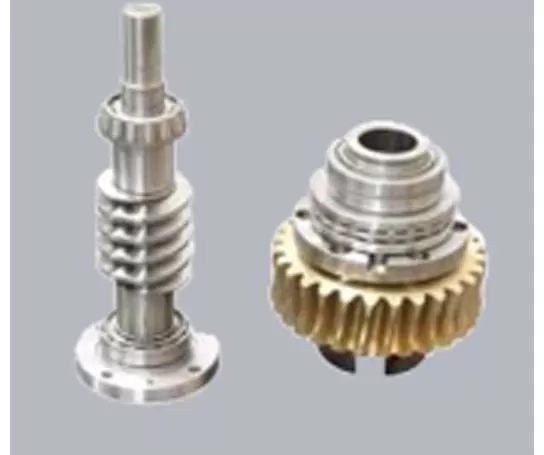

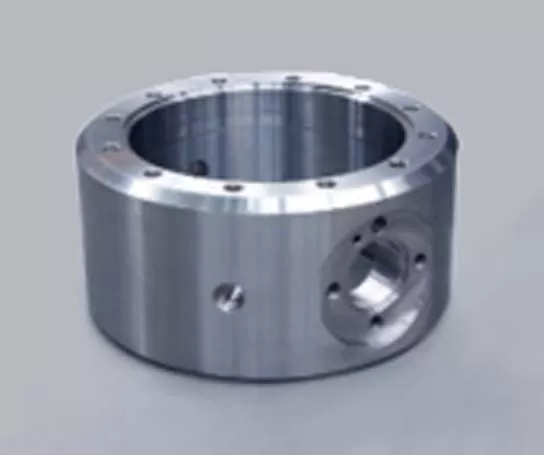

Powerful technology, multiple functions one clamping can complete various processing to meet personalized market manufacturing needs.

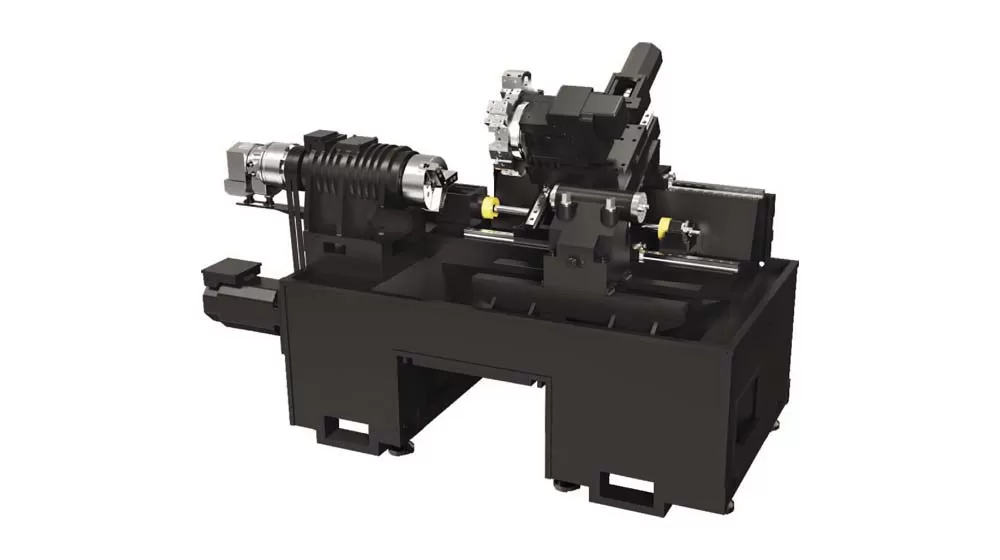

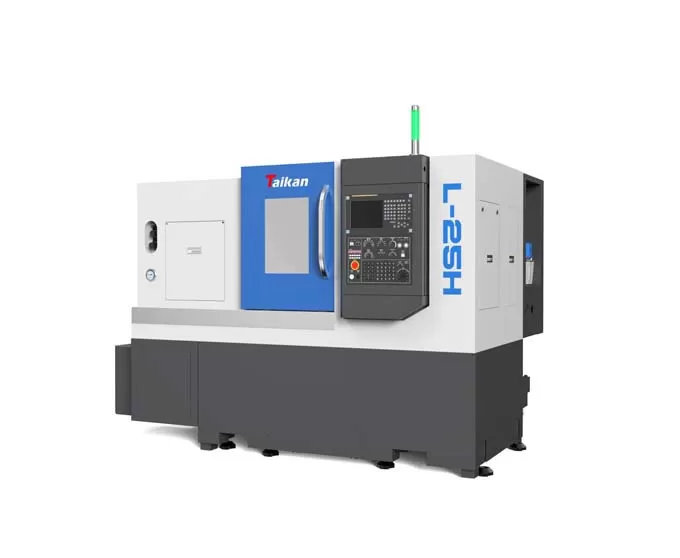

Overall

30° overall inclined bed, with compact structure, high rigidity, smooth chip removal, easy operation, etc.;
Fully enclosed protection, automatic chip removal, automatic lubrication, and automatic cooling.

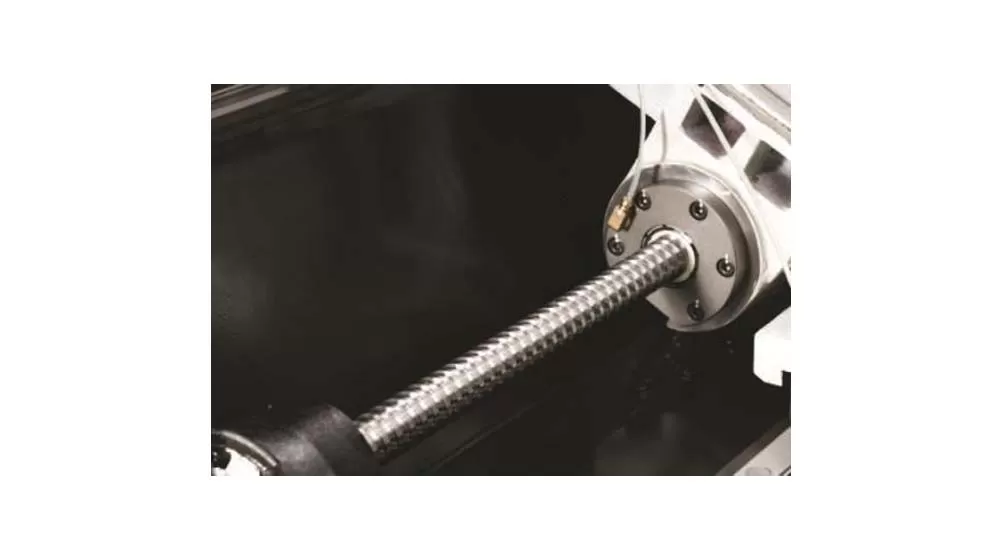

Guide rail

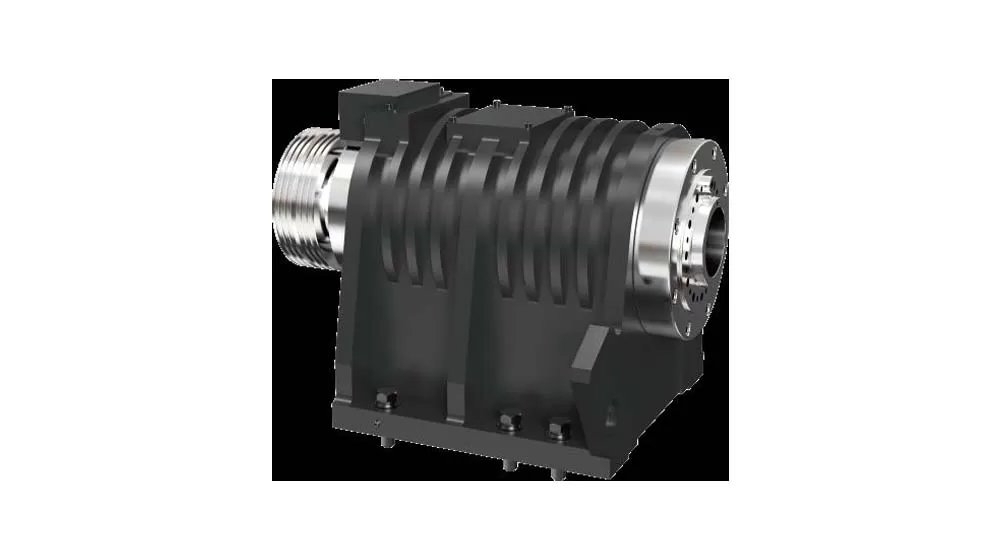

Spindle

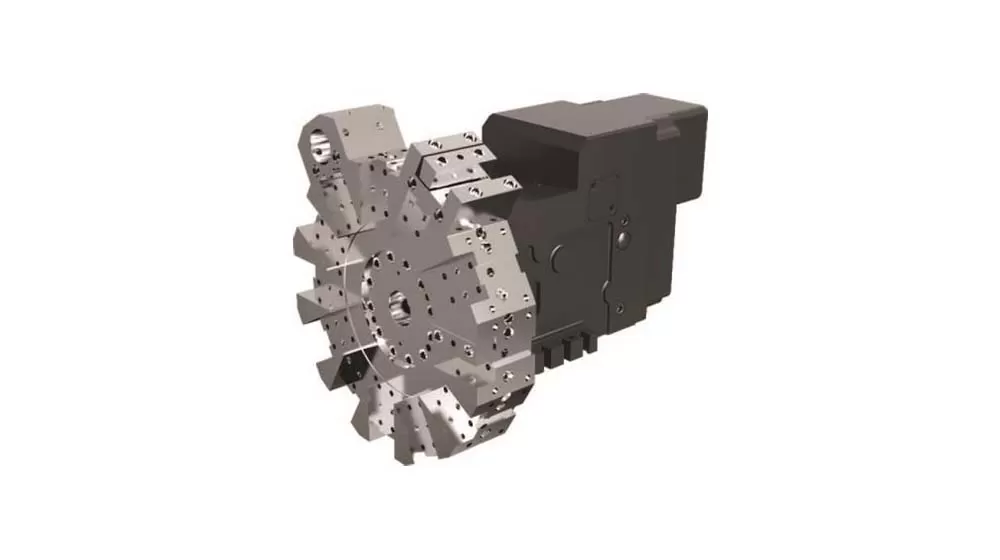

Tool

Name		Unit	HL-25H	Remarks
Machining range	Max. swing diameter on the bed	mm	φ500
	Max. machining diameter (shaft/disc)	mm	φ200/φ250
	Max. machining length	mm	450
	Max. bar diameter	mm	φ45
Travel	X-axis travel	mm	140
	X-axis motor power/stall torque	kw/Nm	1.8/11
	Z-axis travel	mm	500
	Z-axis motor power/stall torque	kw/Nm	1.8/11
Spindle	Output power (S1/S6)	kw	7.5/11
	Spindle end form		A2-5
	Spindle speed	r/min	0-6000
	Spindle through hole diameter	mm	φ57
Chuck	Hydraulic three-jaw chuck	inch	6	Hollow
Tailstock	Tailstock sleeve diameter/travel	mm	φ70/100	Optional
Tailstock	Tailstock sleeve hole taper	Morse	Morse 4#	Live top
Speed	Rapid traverse speed (X axis)	m/min	30
	Rapid traverse speed (Z axis)	m/min	30
	Cutting feed speed	mm/min	1~8000
Tool holder	Tool capacity	T	12
	Tool indexing time	Seconds/bit	0.5
	Tool body size	mm	25´25
	Max. boring tool diameter	mm	40
Accuracy	Positioning accuracy (X axis)	mm	0.006
	Positioning accuracy (Z axis)	mm	0.008
	Repeatability ((X axis)	mm	0.004
	Repeatability ( (Z axis)	mm	0.004
Others	Equipment capacity	kVA	12
	Coolant tank capacity	L	150
	Machine size	mm	250017001680	Manual chip removal coolant tank
	Weight (approx.)	kg	3400
