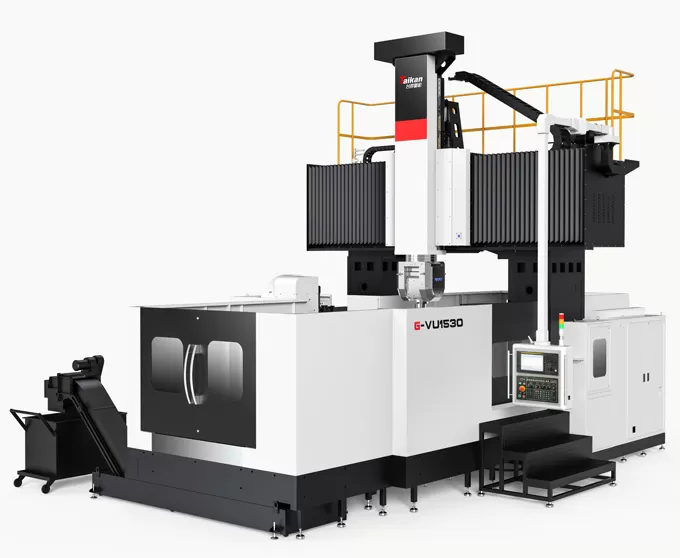

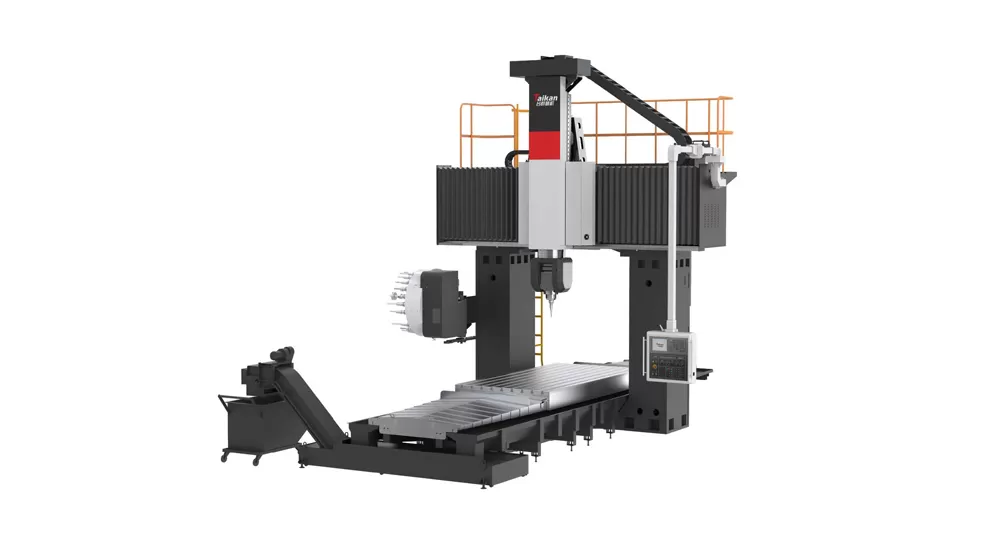

HG-VU1530 5-Axis Gantry Machining Center

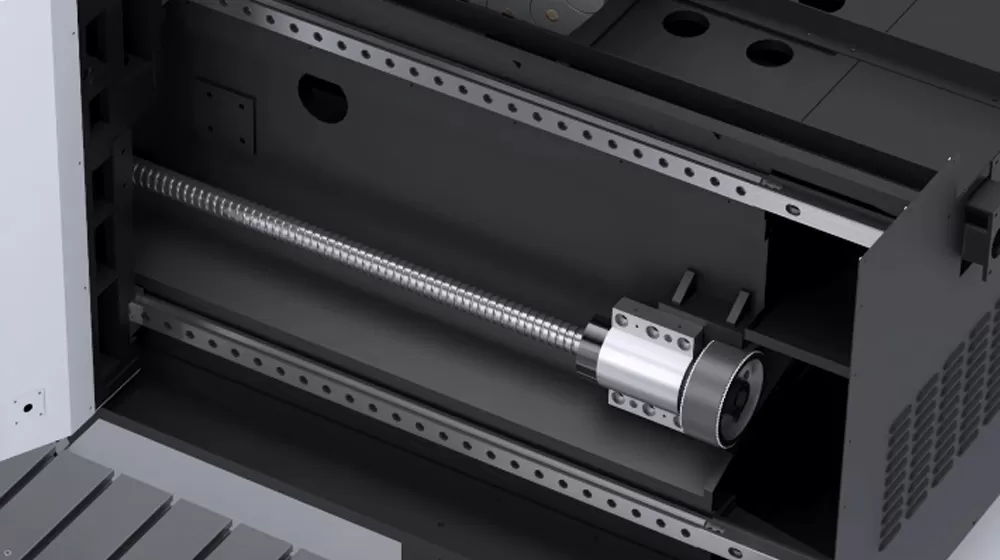

Travel

Table travel (X-axis)

mm

3200

Saddle travel (Y-axis)

mm

2700

Ram travel (Z-axis)

mm

1000

Spindle nose to table distance

mm

100～1100

Spindle overhang

mm

329.2

Effective gantry width

mm

2450

Table

Table size

mm

1500*3000

Max. load

Kg

10000

T-slot

mm

28

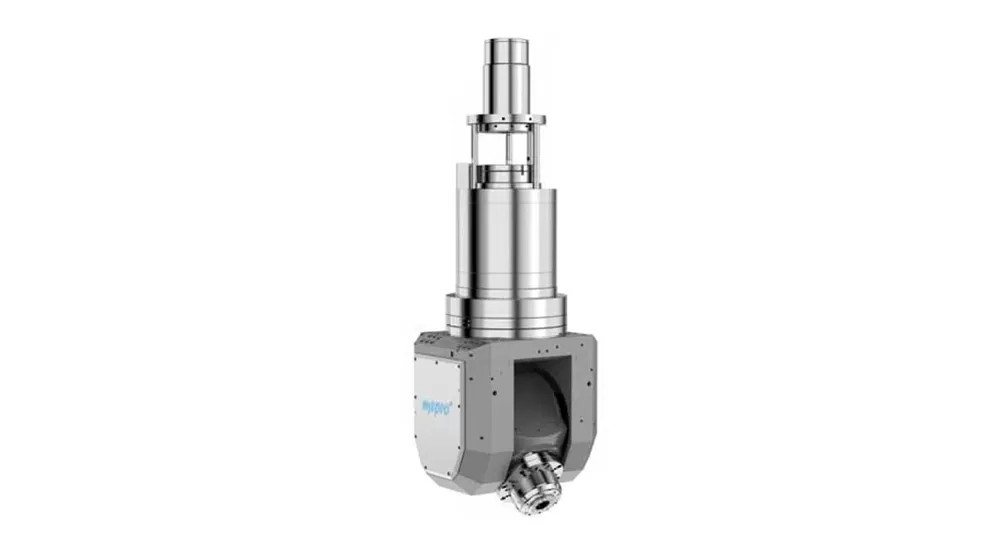

Spindle

Spindle power

KW

30

Max. speed

r/min

18000

Torque output

Nm

72Nm-S1, 85Nm-S6

Spindle taper

HSK-A63

A-axis swing angle

±110°

C-axis rotation

±360°

A/C-axis max. speed

rpm

60

Speed

Feed rate range (Cutting)

mm/min

10000/10000/10000

Rapid traverse speed (X/Y/Z-axis)

mm/min

15000/15000/15000

Accuracy

Positioning accuracy(With scale)

mm

0.023/0.021/0.014

Standard Fagor Linear Scale

Repeatability(With scale)

mm

0.015/0.013/0.011

Standard Fagor Linear Scale

A-axis Positioning accuracy

8″（VD13441）

A-axis Repeatability

4″（VD13441）

C-axis Positioning accuracy

8″（VD13441）

C-axis Repeatability

4″（VD13441）

Others

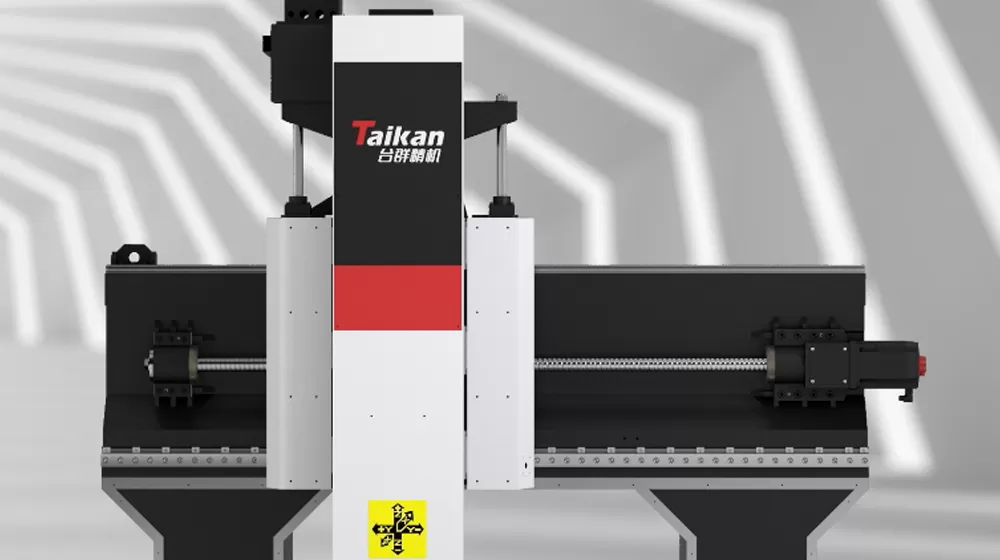

Z-axis counterweight

Hydraulic + nitrogen balance

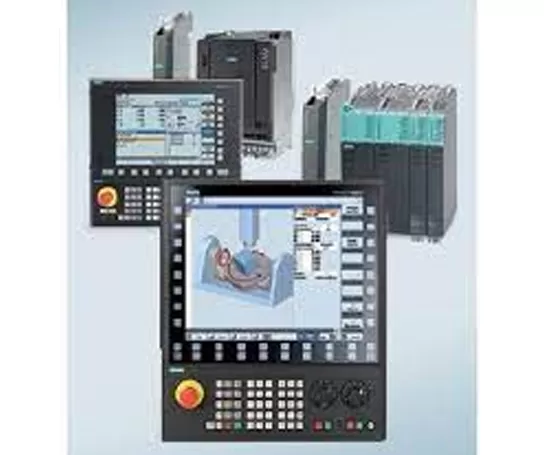

CNC system

SIEMENS ONE

5-axis simultaneous control

Air supply

Flow

L/min

500

Pressure

MPa

0.6~0.8

Coolant tank capacity

L

750

Machine size(L×W×H)

mm

7800*6100*6000

Machine Enclosure

set

Full perimeter sheet metal

No top cover
