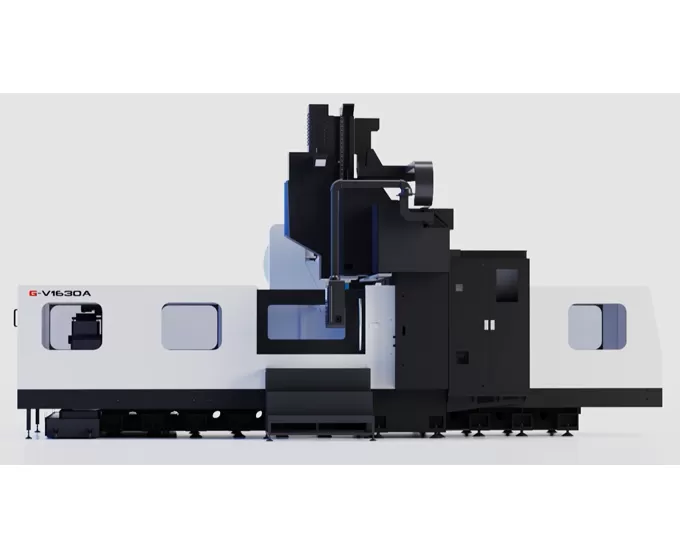

HG-V1630 A/B/C 3-Axis Linear Guides Gantry Machining Center

HG-V1630 A/B/C 3-Axis Linear Guides Gantry Machining Center

Three-Axis Linear Guide Gantry Machining Center

Quantity:




Inquire Add to Basket

Application of HG-V1630 A/B/C 3-Axis Linear Guides Gantry Machining Center
Specifications of HG-V1630 A/B/C 3-Axis Linear Guides Gantry Machining Center
Control & Software

The machine is suitable for the multi-variety and small-to-medium batch processing of complex parts such as medium-sized box-type components, plates, discs, valves, and housings.

HG-V1218D Direct-Drive Spindle Gantry Machining Center

HG-V1530A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

HG-V2530 A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

HG-V3040 A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

HG-V2030 A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

HG-V1220A/B/C 3-Axis Linear Guides Gantry Machining Center

Item			Unit	HG-V1630A	HG-V1630B	HG-V1630C
Travel	X-axis travel (Table longitudinal)		mm	3200
	Y-axis travel (Crossbeam transverse)		mm	1800
	Z-axis travel (Ram vertical)		mm	800
	Distance from spindle end to table		mm	100～900		70～870
	Effective gantry width		mm	1800
Table	Table size (L×W)		mm	3000×1600
	Max. load		kg	8000
	T-slot (Width×Pitch×Qty)		mm	22×160×9
Spindle	Drive type		/	Belt driven	Gear driven	Motorized spindle
	Max. spindle speed		r/min	6000	6000	15000
	Spindle power (Rated/Peak)		kW	15/18.5		15/22
	Torque output (Rated/Peak)		N.m	191/315	573/945	45.7/73.6
	Spindle taper		/	BT50		BBT40
ATC (Opt.)	Number of tools		T	24
	Max. tool dia. (Full/Adjacent)		mm	Φ110/Φ200		Φ80/Φ150
	Max. tool length		mm	350		250
	Max. tool weight		kg	18		8
Speed	Feed rate range (Cutting)		m/min	10
	Rapid traverse speed (X/Y/Z-axis)		m/min	16/16/12
Accuracy	Positioning accuracy		mm	0.02/0.015/0.012
	Repeatability		mm	0.012/0.008/0.008
Others	Z-axis counterweight		/	Nitrogen balance
	CNC system		/	FANUC 0i-MF PLUS (Opt. Mitsubishi M80, Siemens 828D)
	Air supply	Flow	L/min	280 (ANR)
		Pressure	MPa	0.5～0.8
	Total electrical capacity		kVA	40
	Coolant tank capacity		L	400
	Machine size	Length	mm	7800
		Width	mm	5400
		Height	mm	4550
	Machine Enclosure		-	Full perimeter sheet metal
