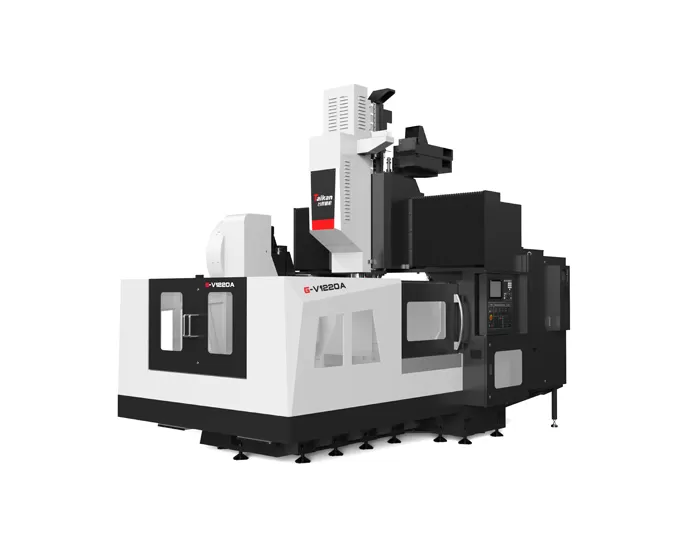

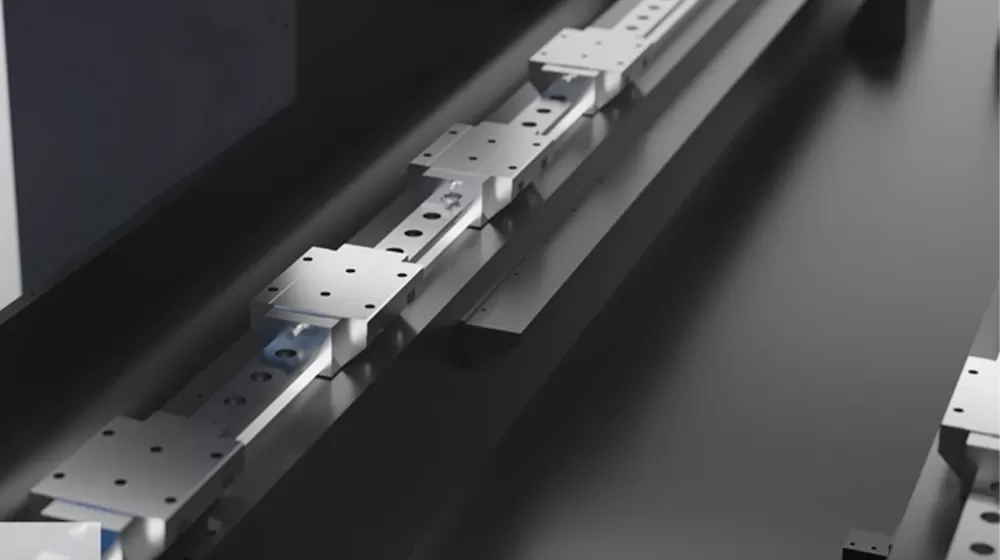

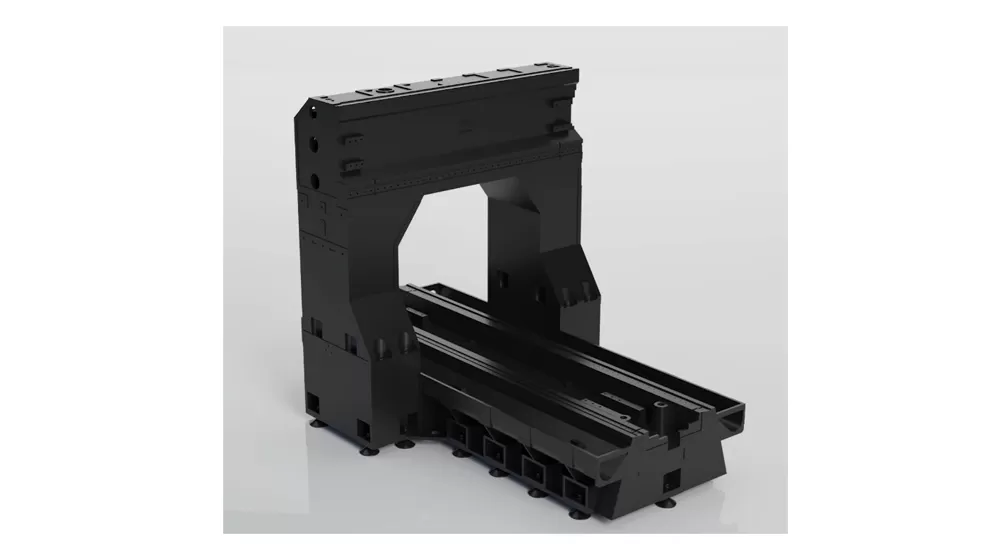

Item | Unit | HG-V1018A | HG-V1220A | HG-V1225A | HG-V1230A | HG-V1018C | HG-V1220C | HG-V1225C | HG-V1230C |
Travel | X-axis travel | mm | 1800 | 2150 | 2650 | 3200 | 1800 | 2150 | 2650 | 3200 |
Y-axis travel | mm | 1100(+100 tool change) | 1500 (+25 tool change) | 1100(+100 tool change) | 1500 (+25 tool change) |
Z-axis travel | mm | 800 | 800 |
Distance from spindle end to table | mm | 100～900 | 70～870 |
Effective gantry width | mm | 1160 | 1560 | 1160 | 1560 |
Table | Table size (L×W) | mm | 1800×1000 | 2000×1250 | 2500×1250 | 3000×1250 | 1800×1000 | 2000×1250 | 2500×1250 | 3000×1250 |
Max. load | kg | 3000 | 4000 | 5000 | 6000 | 3000 | 4000 | 5000 | 6000 |
T-slot (Width×Pitch×Qty) | mm | 22×140×7 | 22×160×7 | 22×140×7 | 22×160×7 |

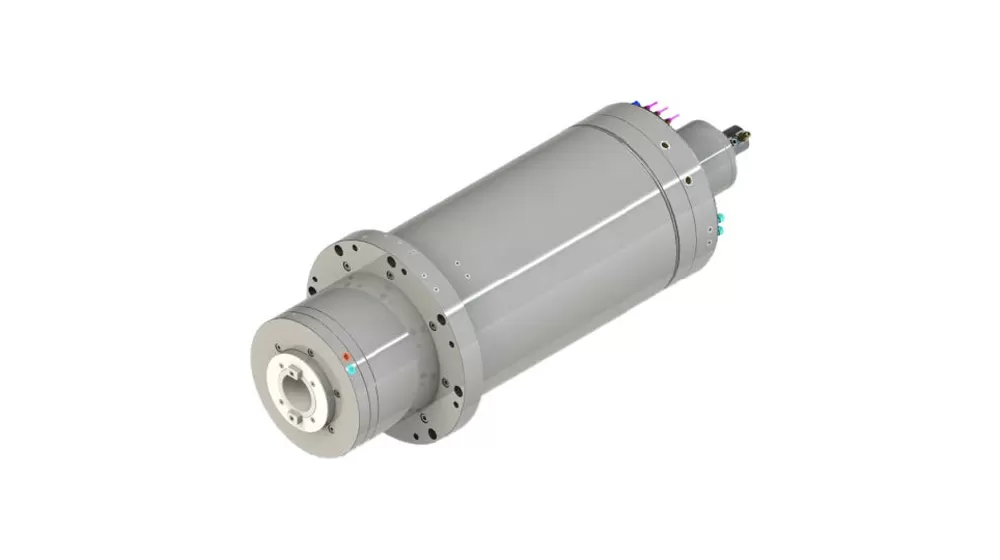

Spindle | Drive type | / | Belt driven (Opt. gear driven) | Motorized spindle |
Max. spindle speed | r/min | 6000 | 15000 (Opt. 18000) |
Spindle power (Rated/Peak) | kW | 15/18.5 | 15/22 |
Torque output (Rated/Peak) | N.m | 191/315 (Opt. gear 573/945) | 45.7/73.6 |
Spindle taper | / | BT50 | BBT40 (Opt. HSK-A63) |
ATC (Opt.) | Number of tools | T | 24 | 24 |
Max. tool dia. (Full/Adjacent) | mm | Φ110/Φ200 | Φ80/Φ150 |
Max. tool length | mm | 350 | 250 |
Max. tool weight | kg | 18 | 8 |
Speed | Feed rate range (Cutting) | m/min | 10 | 10 |
Rapid traverse speed (X/Y/Z-axis) | m/min | 16/16/12 | 16/16/12 |
Accuracy | Positioning accuracy | mm | 0.015/0.012/0.012 | 0.02/0.012/0.012 | 0.015/0.012/0.012 | 0.02/0.012/0.012 |
Repeatability | mm | 0.008/0.008/0.008 | 0.012/0.008/0.008 | 0.008/0.008/0.008 | 0.012/0.008/0.008 |
Others | Z-axis counterweight | / | Nitrogen balance | Nitrogen balance |
CNC system | / | FANUC 0i-MF PLUS (Opt. Mitsubishi M80, Siemens 828D) | FANUC 0i-MF PLUS (Opt. Mitsubishi M80, Siemens 828D) |
Air supply | Flow | L/min | 280 (ANR) | 280 (ANR) |
Pressure | MPa | 0.5~0.8 | 0.5~0.8 |
Total electrical capacity | kVA | 40 | 40 |

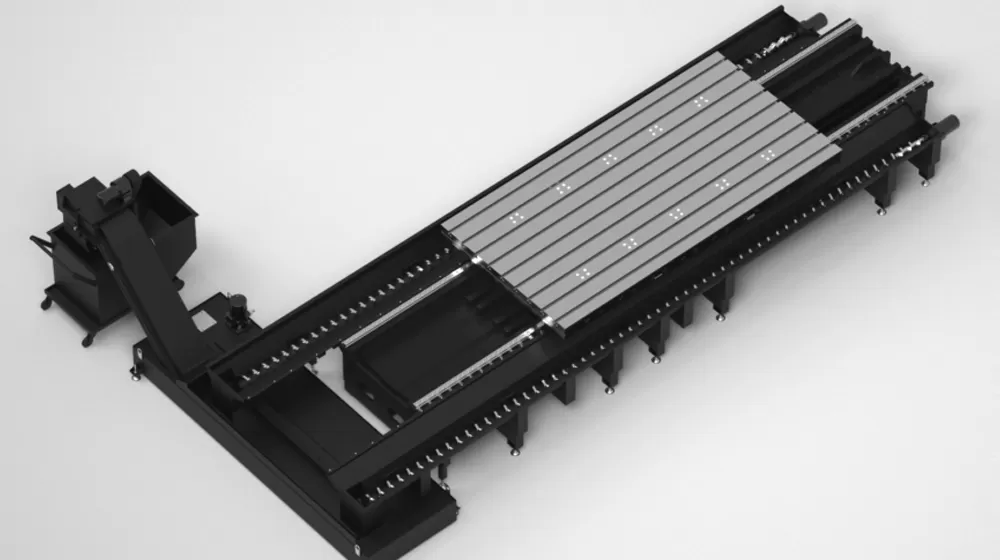

Coolant tank capacity | L | 400 | 400 |
Machine size | Length | mm | 4600 | 5100 | 6300 | 7800 | 4600 | 5100 | 6300 | 7800 |
Width | mm | 4600 | 4900 | 4600 | 4900 |
Height | mm | 4500 | 4550 | 4500 | 4550 |
Machine Enclosure | - | Full perimeter sheet metal | Full perimeter sheet metal |
Note: G-V1018B, G-V1220B, G-V1225B, G-V1230B are equipped with 6000rpm gear drive spindle.
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
