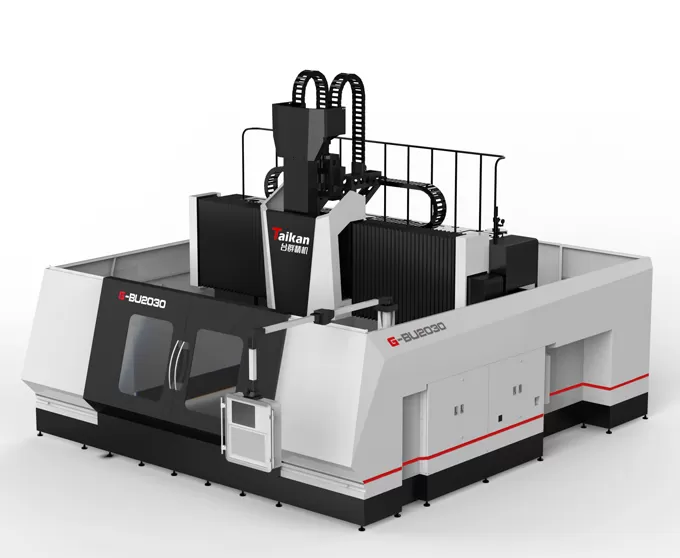

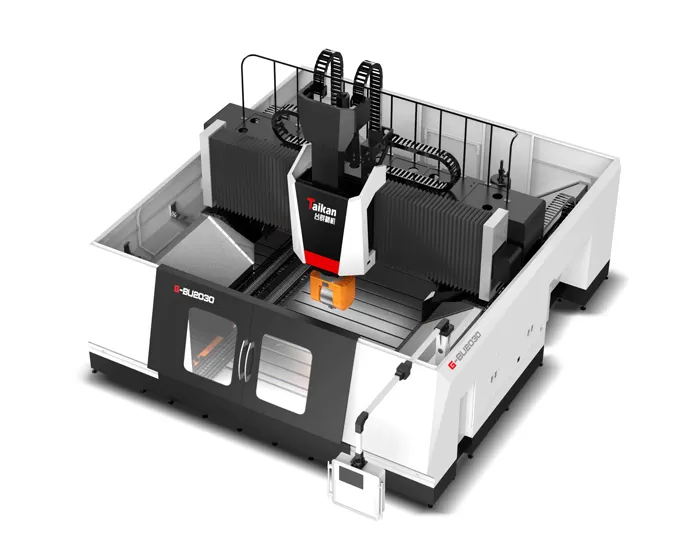

HG-BU2030 5-Axis Gantry Machining Center

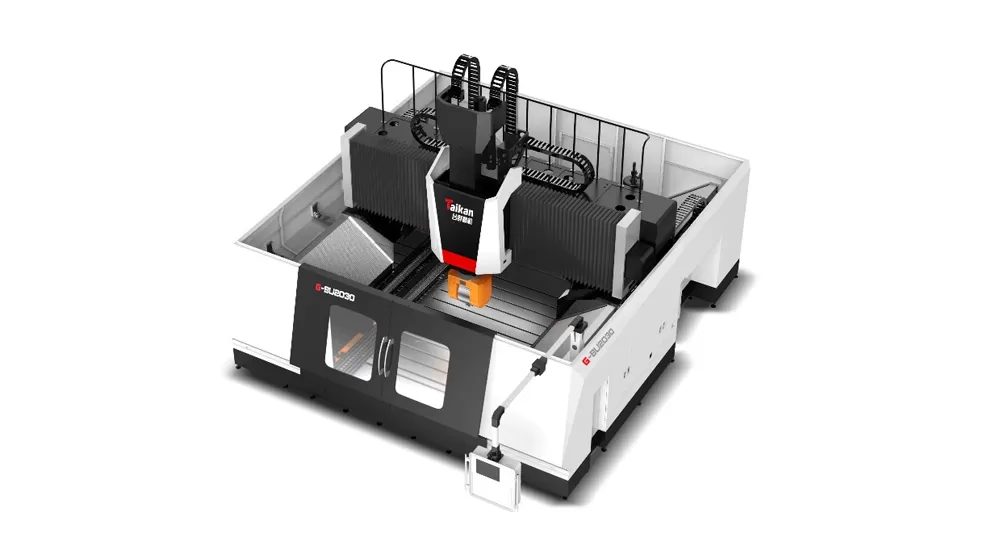

• All XYZ axes are equipped with heavy-duty roller linear guideways,

• The Y-axis crossbeam guideway uses a stepped arrangement with a wide guideway span to enhance load capacity.

• The Z-axis saddle guideway features 4 guideways installed at 90° with 12 linear blocks to support Z-axis guideways, providing strong spindle rigidity and good high-speed performance.

XY axes use a large lead ball screw drive structure.

The Z axis uses a direct motor-ball screw drive.

• The spindle unit uses a Zhongke Ibeg T70.5 5-axis linked A/C double swivel milling head, which can achieve 5-axis linked machining of complex surfaces.

• With high-precision encoders and a hydraulic clamping system, the A and C axes can be clamped at any angle within their operating range (C axis ±360°, A axis ±110°).

• Standard 18000rpm motorized spindle, capable of high-precision, fast, and continuous cutting.

• Independent hydraulic pump station ensures safe and reliable tool clamping.

• Motorized and A/C axis drives are equipped with a temperature control cooling system.
