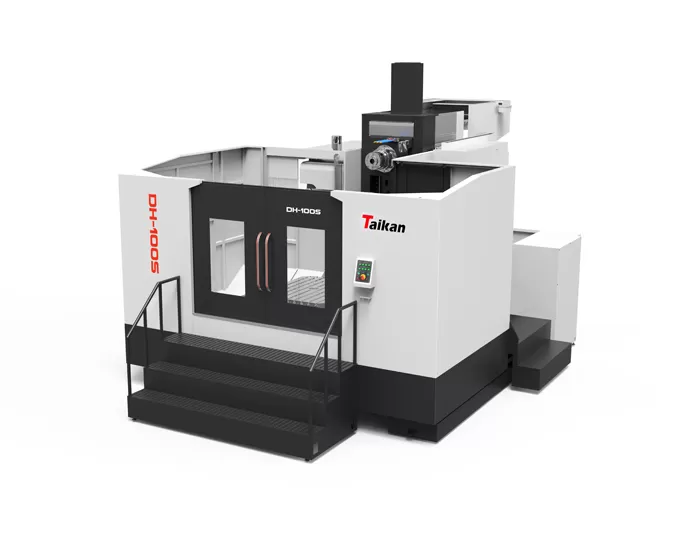

HDH-100S Horizontal Machining Center

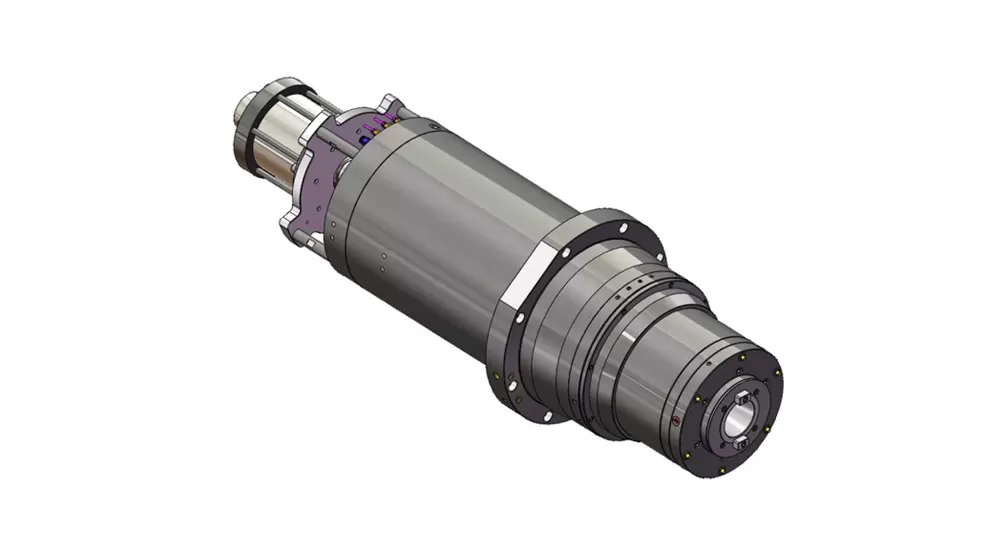

Equipped with a high-power BT50 electric spindle, featuring automatic dual-winding switching, capable of meeting different requirements for high speed and high torque. The spindle offers high speed, high precision, and low noise performance.

The standard temperature-controlled cooling system effectively reduces the spindle temperature, preventing thermal deformation and maintaining stable machining accuracy during extended operations.

Additionally, various spindle options are available to handle different operating conditions, ensuring efficient and stable performance in diverse production environments.

The system uses high-precision taper positioning pins combined with a hydraulic boost locking mechanism to ensure the worktable is firmly clamped, maintaining stability and vibration-free performance during machining.

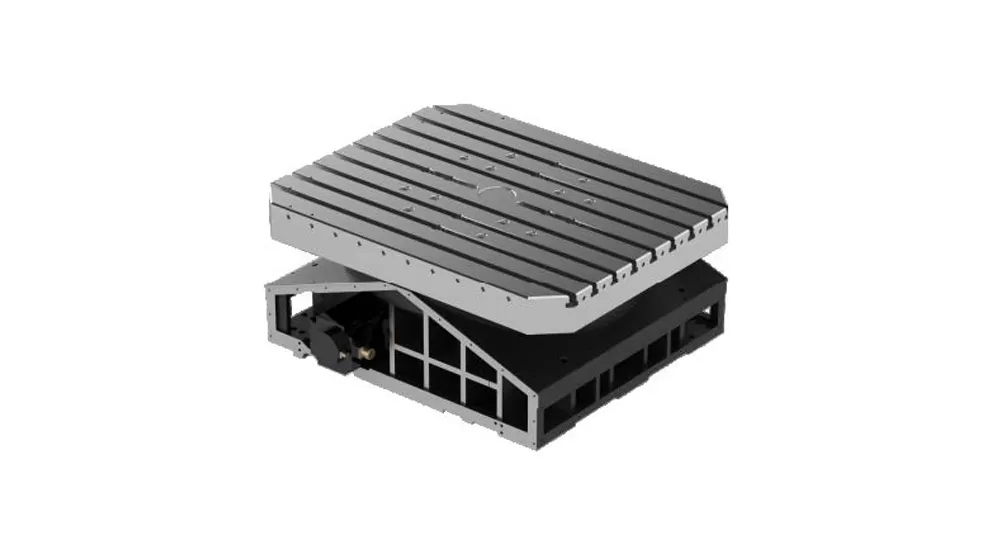

The cam-type CNC rotary table features a curved cam's constant-speed drive surface and preloaded rolling contact transmission with needle bearings on the turret, offering high precision, high speed, zero backlash, and the ability to handle heavy loads.

Additionally, a high-precision direct-drive rotary table is available as an option, equipped with a high-torque frameless direct-drive motor, large-diameter high-precision dedicated rotary table bearings, and a Renishaw circular grating for enhanced accuracy and stability.
