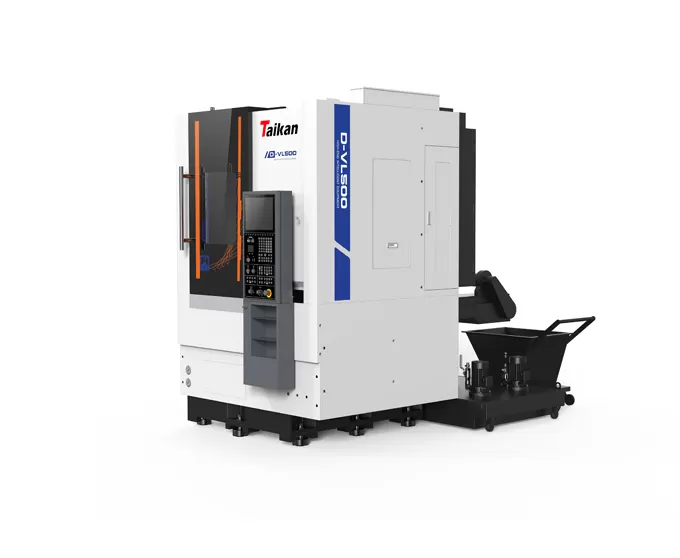

High Precision CNC Vertical Lathe

Main Structure

The crossbeam has high resistance to bending and torsion, ensuring stable cutting.
The column is a strong, vibration-resistant cast box structure.
The X/Z axes use high-load roller guides and pre-stretched ball screws to minimize thermal effects.

Spindle and Table

Standard Turret

Optional Turret

Item		Unit	D-VL500	D-VL500M
Machining Range	Max Swing Diameter	mm	650
	Max Turning Diameter over Carriage	mm	500
	Max Workpiece Height	mm	500
	Max Workpiece Weight	Kg	500
Spindle	Chuck Diameter	inch	12″(Hydraulic Chuck)
	Spindle Speed Range	r/min	50～2500
	Max Spindle Torque	Nm	900
	Spindle Nose Type	/	A2-8
	Spindle Centering Bearing Diameter	mm	130
	Main Motor Power (S1/S2)	KW	12/22.8	12/23
Tool Post	Turret Type	/	Horizontal (Vertical optional)	Horizontal
	Number of Positions	/	8（6）	12
	Drive Type	/	Hydraulic	Servo
	Outer Diameter of Cutting Tool Holder	mm	32×32
	Inner Hole Tool Holder Diameter	mm	φ50
Feed	X/Z Axis Feed Guideway Type	/	Linear Guide
	X/Z Axis Feed Rate	mm/min	0.1～1000
	X/Z Axis Rapid Traverse Speed	m/min	20/16
	X-Axis Horizontal Travel	mm	—20～315
	Z-Axis Vertical Travel	mm	520
	X/Z Axis Feed Motor Torque	Nm	12/22
Machining Capability	Power Head Motor Power	KW/Nm	/	5.5/48
	Max Drilling Capacity	mm	/	Φ20×0.2
	Max Tapping Capacity	mm	/	M16×2/M27×1.5
	Max Grooving Capacity	mm	/	Φ25×15×40
Accuracy	Positioning Accuracy (X-axis)	mm	0.01
	Positioning Accuracy (Z-axis)	mm	0.01
	Positioning Accuracy (C-axis)	"	/	55
	Repeatability (X-axis)	mm	0.006
	Repeatability (Z-axis)	mm	0.006
	Repeatability (C-axis)	"	/	25
Other	CNC System	/	Siemens
	Total Power Supply Capacity	kVA	45	50
	Coolant Tank Capacity	L	300
	Footprint (Length×Width)	mm	1750×3050
	Machine Height	mm	2600
	Machine Weight (Approx.)	t	6.5	7
