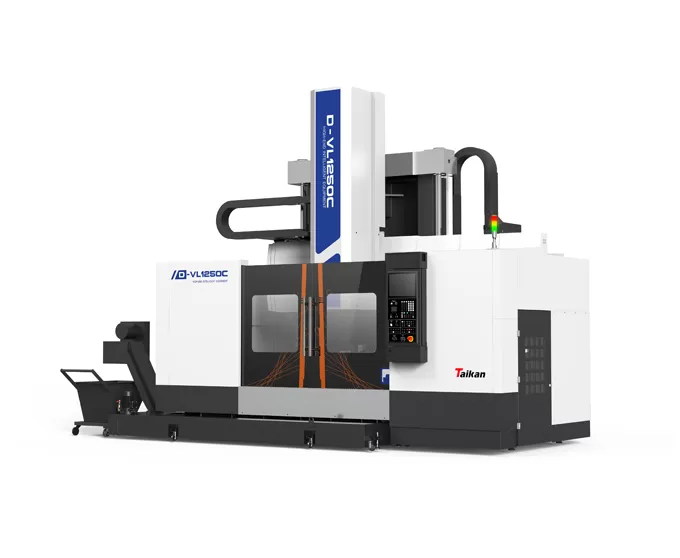

High Precision CNC Vertical Lathe

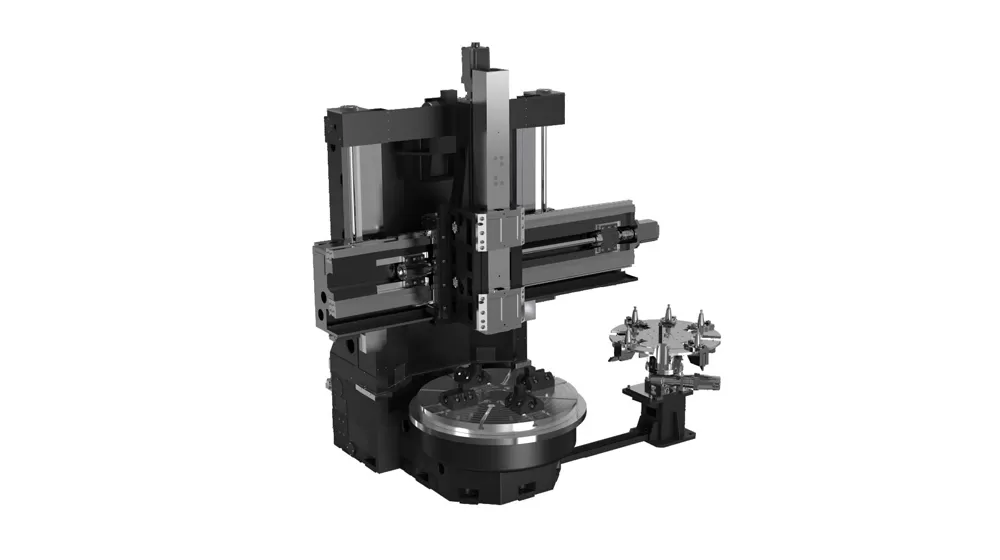

Machine Structure

The machine features a bed-type, thermally symmetric structure, with major components made from high-strength cast iron to ensure stability and rigidity.
The bridge is vertically adjustable to accommodate parts of different heights, ensuring optimal rigidity for each machining task.
The movement uses a staged positioning system to maintain accuracy, with a floor-mounted tool magazine for improved efficiency.

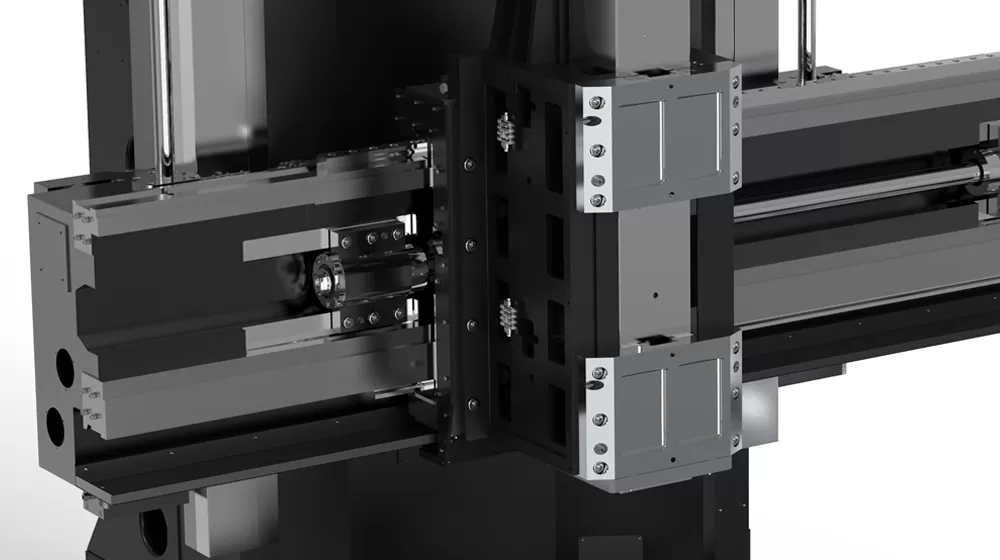

X-Axis Bridge

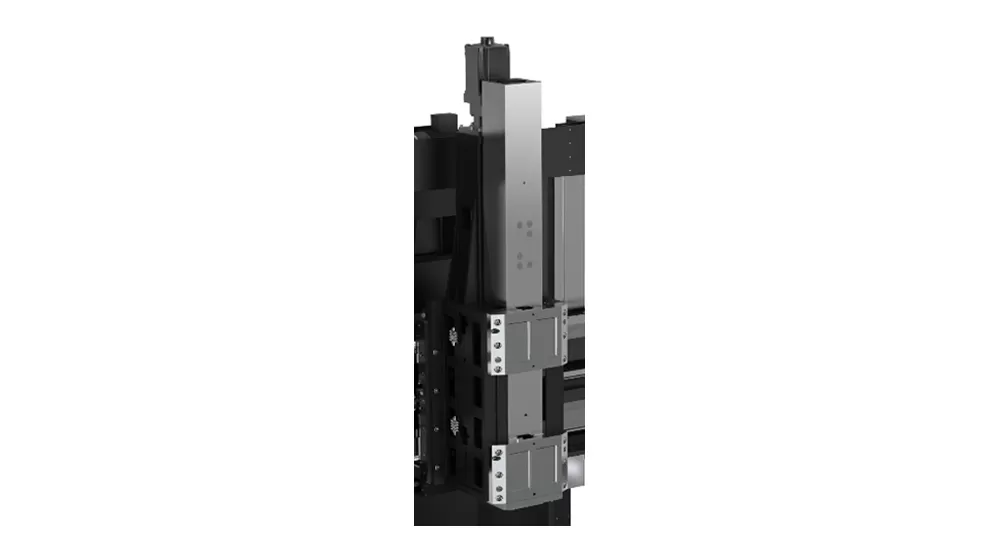

Z-Axis Ram

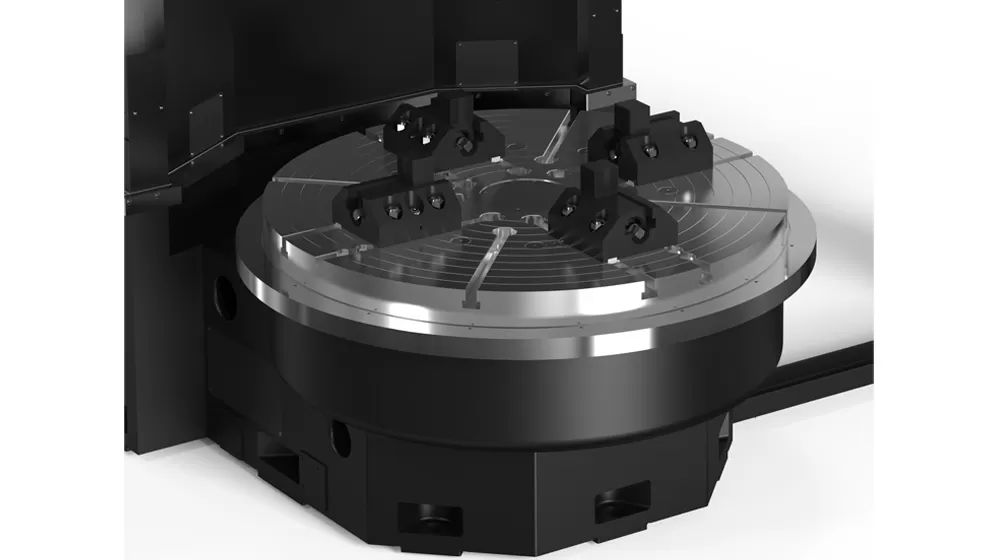

Table & Spindle

Item		Unit	D-VL1250C	D-VL1250CM
Processing Range	Max Turning Diameter	mm	1250
	Max Workpiece Height	mm	1000
	Max Workpiece Weight	kg	5000
Spindle	Table Diameter	mm	1100
	Spindle Speed Range	r/min	3.15～400
	Milling Feed and Indexing Range	r/min	/	0.04～2
	Max Table Torque	kN·m	8	20
	Main Motor Power	KW	S1=31,S2=37	S1=31,S2=37(two sets)
Turret	Tool Turret Type	/	Turning Center	Turning-Milling Center
	Saddle Cross Section	mm	220×220	280×280
	Tool Positions	/	8 or 12	8 or 12
	Outer Diameter Turning Tool Holder Size	mm	32×32	40×40
	Turning Center Output Interface	/	BT50	BT50
Feed	X-axis Feed Guideway Type	/	Box Guideway / Linear Guideway
	Z-axis Feed Guideway Type	/	Box Guideway
	X, Z-axis Cutting Feed Range	mm/min	1000
	X, Z-axis Tool Turret Rapid	m/min	12/10
	X-axis Horizontal Travel	mm	—50～850
	Z-axis Vertical Travel	mm	1000
	X, Z-axis Feed Motor Torque	Nm	37/25
Crossbeam	Crossbeam Vertical Travel	mm	600
	Crossbeam Indexing Pitch	mm	200
	Crossbeam Indexing Steps	/	4
Milling Spindle	Milling Spindle Motor Power	KW	/	S1=31,S2=37
	Milling Spindle Speed	r/min	/	10～2000
	Milling Spindle Taper Hole	/	/	BT50
	Max Milling Spindle Torque	N·m	/	1200
Accuracy	Positioning Accuracy (X/Z)	mm	0.02
Accuracy	Repeatability (X/Z)	mm	0.01
Others	CNC System	/	Siemens
	Total Machine Power	kVA	75	85
	Coolant Tank Capacity	L	600
	Machine Footprint (L×W)	mm	5550×3750
	Machine Height	mm	4650	6450
	Machine Weight (approx.)	t	21	25
