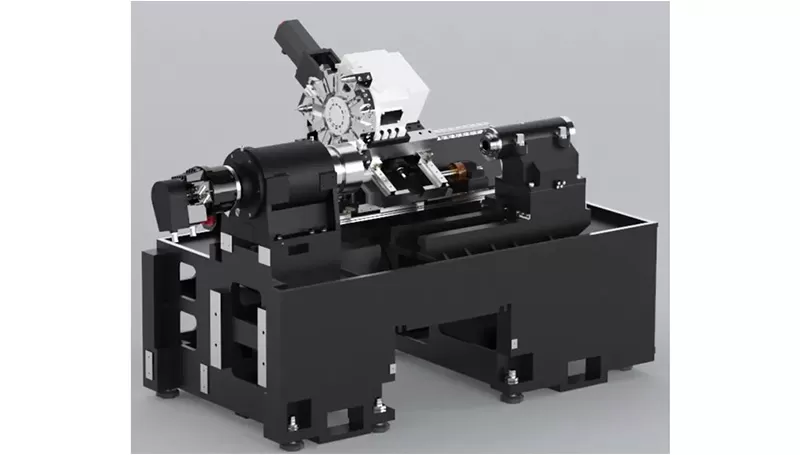

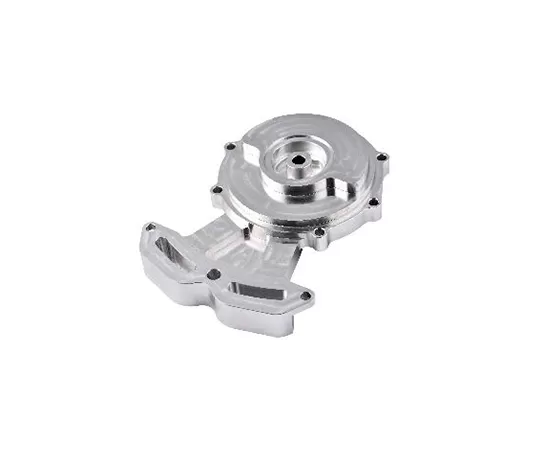

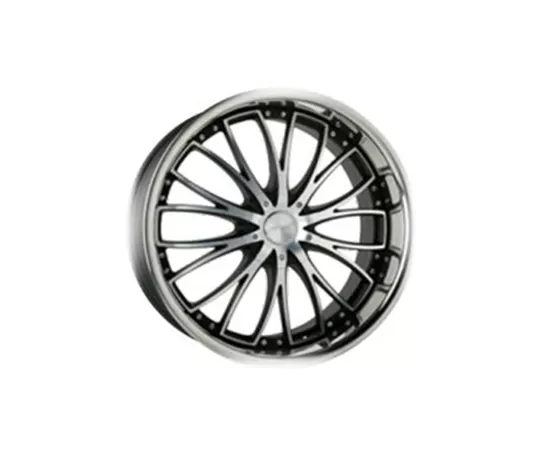

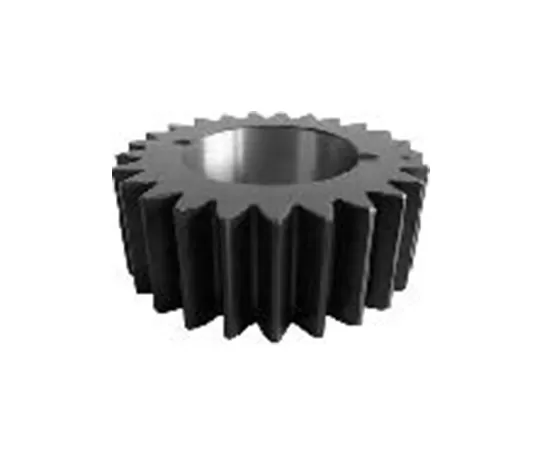

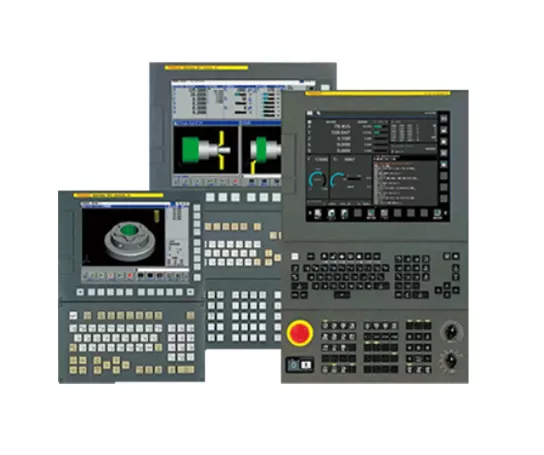

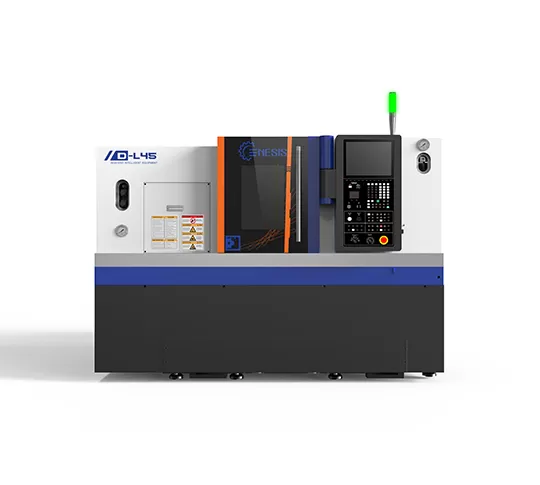

Overall Structure

The machine tool features an integrated mechanical, electrical, and hydraulic layout with a 30° integral high-low rail bed, offering advantages such as compact structure, high rigidity, smooth chip removal, and convenient operation.

The guideways are rolling guideways, and the drive components utilize high-speed, silent ball screws, providing advantages such as high speed, low heat generation, and high positioning accuracy. The machine tool is fully enclosed, with manual chip removal, automatic lubrication, and automatic cooling. All major basic components are cast from high-quality resin sand molding and high-strength cast iron materials, ensuring high rigidity and stable precision.

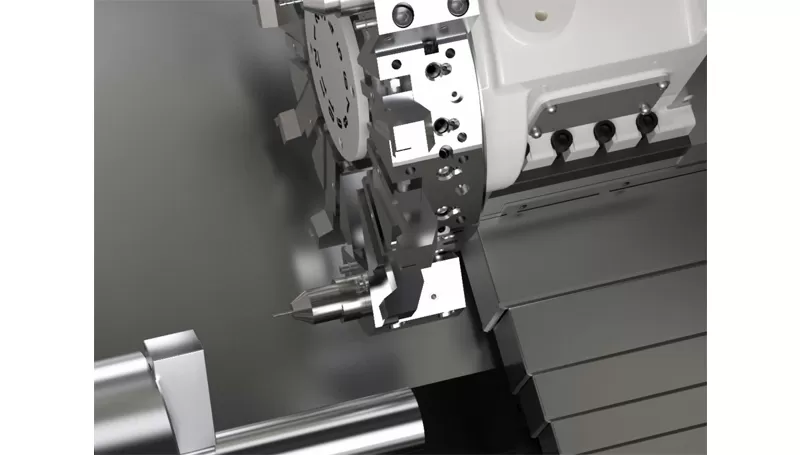

Motorized spindle

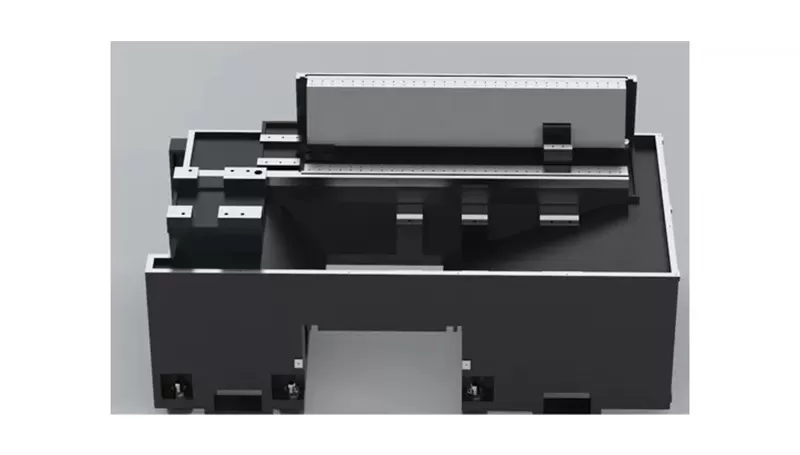

Drive

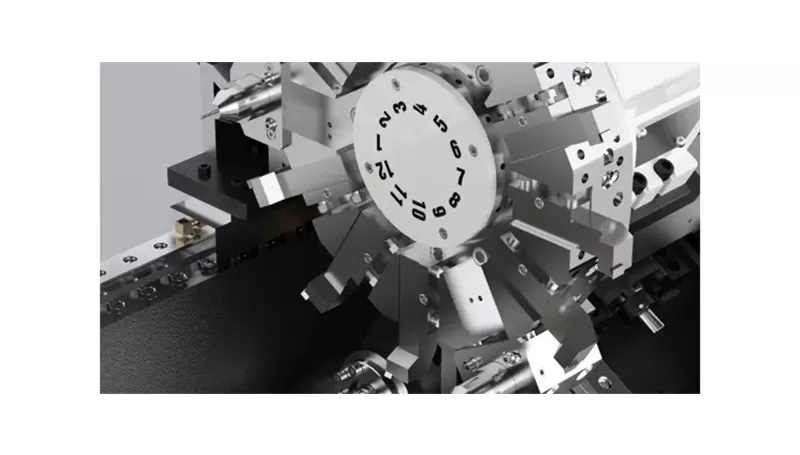

Tool magazine

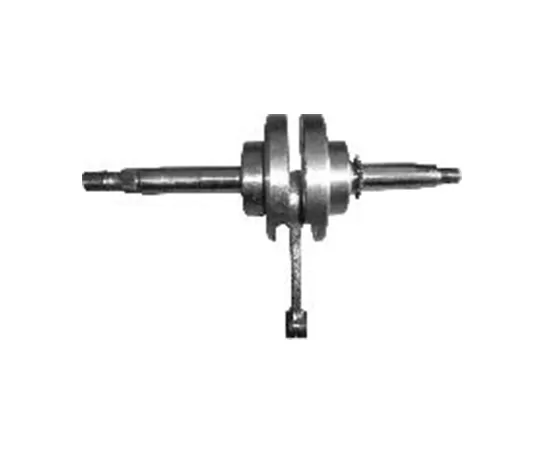

Name		Unit	Spec.	Notes
Processing range	Maximum turning diameter on the bed	mm	φ650
	Maximum machining diameter (spindle/disc)	mm	φ380/φ450
	Maximum machining length	mm	560
	Maximum bar stock diameter	mm	φ75
Travel	X-axis travel	mm	240
	X-axis motor power/stall torque	kw/Nm	2.2/38
	Z-axis travel	mm	580
	Z-axis motor power/stall torque	kw/Nm	2.2/38
Spindle	Output power (S1/S6)	kw	11/22
	Spindle end type		A2-8
	Spindle speed	r/min	0-2800
	Spindle bore diameter	mm	φ87
Rapid Speed	Rapid traverse speed (X axis)	m/min	30
	Rapid traverse speed (Z axis)	m/min	30
	Cutting feed speed	mm/min	1~8000
Tool	Tool capacity	T	12
	Tool indexing time	Seconds/bit	0.5
	Lather Tool body size	mm	25×25
	Max. boring tool diameter	mm	40
Accuracy	Positioning accuracy (X axis)	mm	0.006
	Positioning accuracy (Z axis)	mm	0.006
	Repeatability (X axis)	mm	0.004
	Repeatability (Z axis)	mm	0.004
Other	Power supply capacity	kVA	20
	Fluoride coolant tank volume	L	150
	Machine tool dimensions	mm	2480×1840×2120	Manual chip removal water tank
	Machine tool net weight (approx.)	kg	3800
