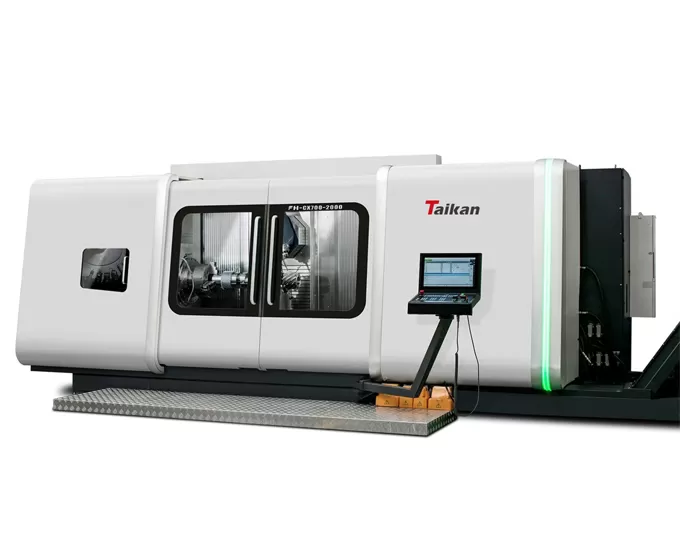

Seven-axis Five-simultaneous Milling And Turning Machining Center

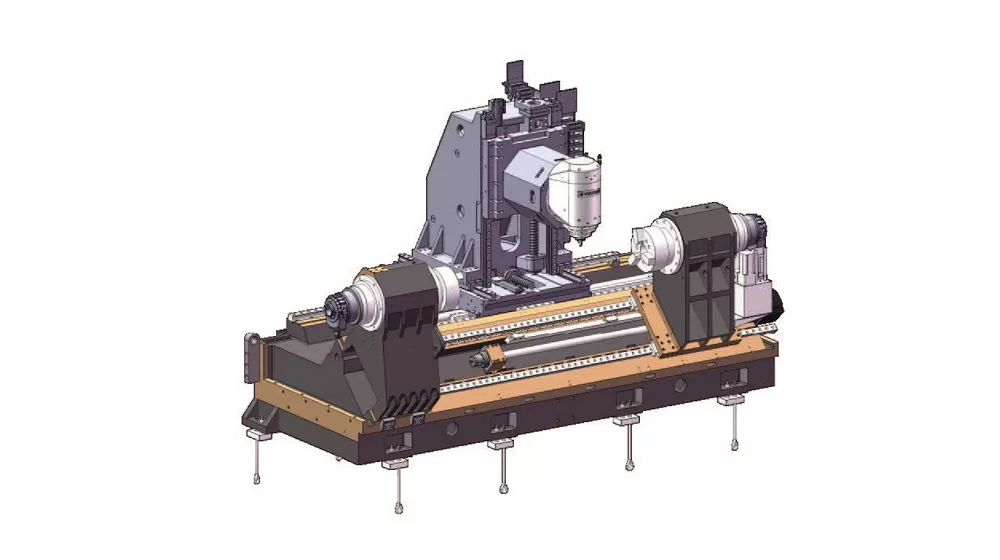

Overall structure

The ultra-compact mill-turn spindle ensures thesmallest footprint in the machining space, a more spacious and transparent working space with better accessibility. The operating distance from the spindle center is reduced to a minimum.
The maximum turning diameter of 630mm is achieved through the large stroke of the moving column axis: the maximum torque of the spindle is up to 764Nm. The optional sub-spindle can be used for complete 6-sided processing, the eccentric processing Y-axis stroke is up to 200mm, and the moving column design provides maximum stability.

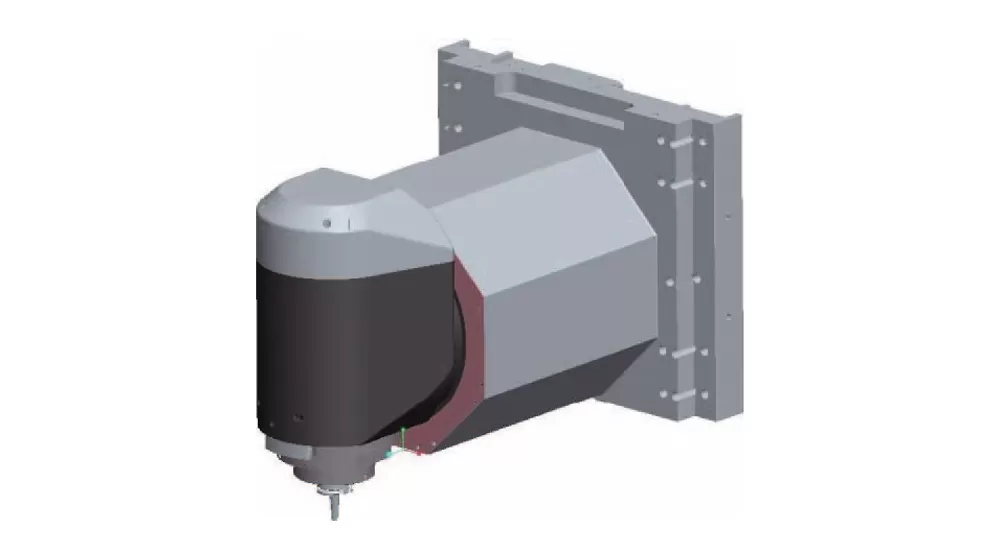

Independent design CNC oscillating milling head

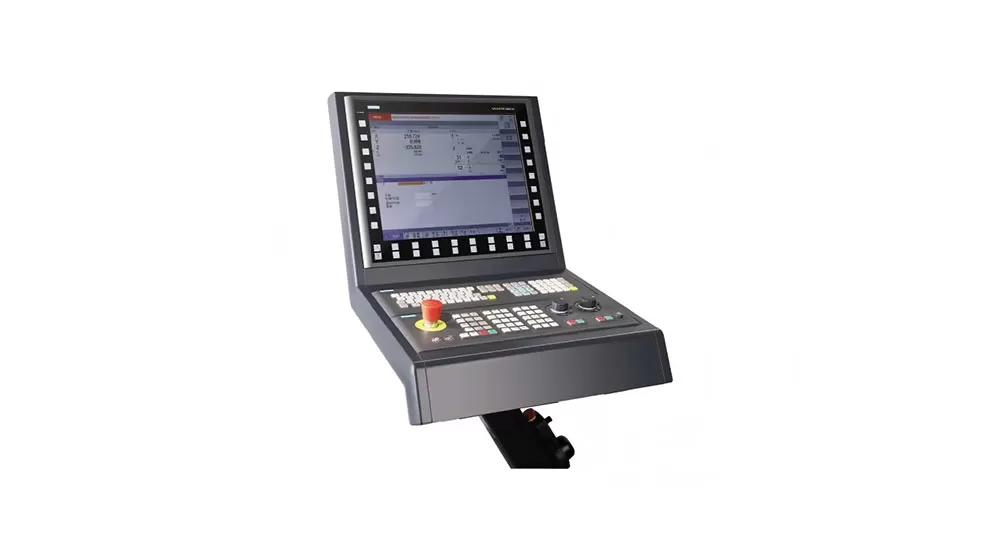

SINUMERIKONE CNC system

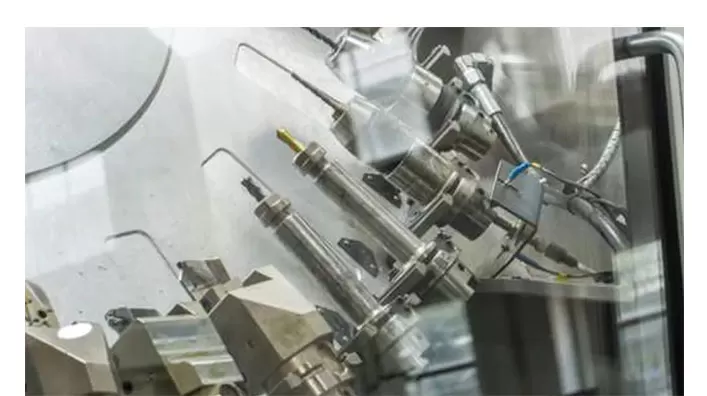

Automatic tool change system

content is empty!

	Model	Unit	CX700-2000
Travel	X-axis travel	mm	650
	Y-axis travel	mm	400
	Z-axis travel	mm	2030
	Max. turning diameter	mm	Ø 700
	Max. turning diameter	mm	Ø 630
	X/Y/Z rapid speed	m/min	40/40/50
	X/Y/Z feed force	KN	12/9/12
First spindle (C4 axis)	Maximum speed	rpm	4000
	Rated power	Kw	30
	Maximum power	Kw	37
	Rated torque	Nm	570
	Maximum torque	Nm	700
Second spindle (C3 axis)	Maximum speed	rpm	4000
	Rated power	Kw	30
	Maximum power	Kw	37
	Rated torque	Nm	570
	Maximum torque	Nm	700
CNC oscillating milling head (B-axis)	Oscillating range	°	±120
CNC oscillating milling head (B-axis)	Rapid traverse speed and feed rate	rpm	50
Milling spindle	Maximum spindle speed	rpm	12500
Tool magazine	Tool interface		HSKT63
Tool magazine	Tool magazine capacity	Pcs	36
Position accuracy (ISO230-2 and VDI3441)	X/Y/Z positioning accuracy	mm	0.01
	X/Y/Z Repeat positioning accuracy	mm	0.008
	B/C positioning accuracy		10"
	B/C Repeat positioning accuracy		6"
