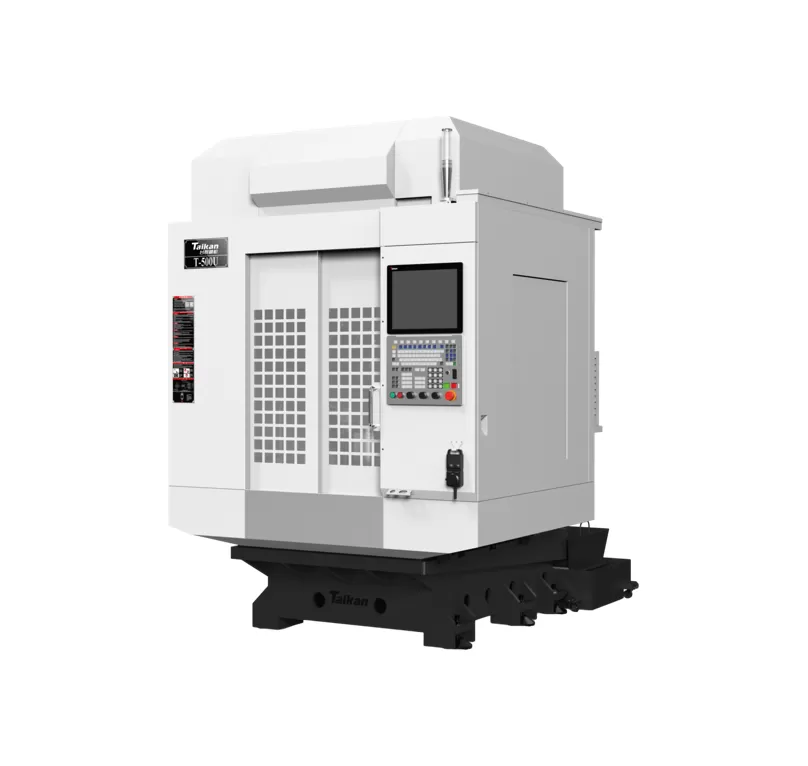

5-axis simultaneous drilling and tapping machining center

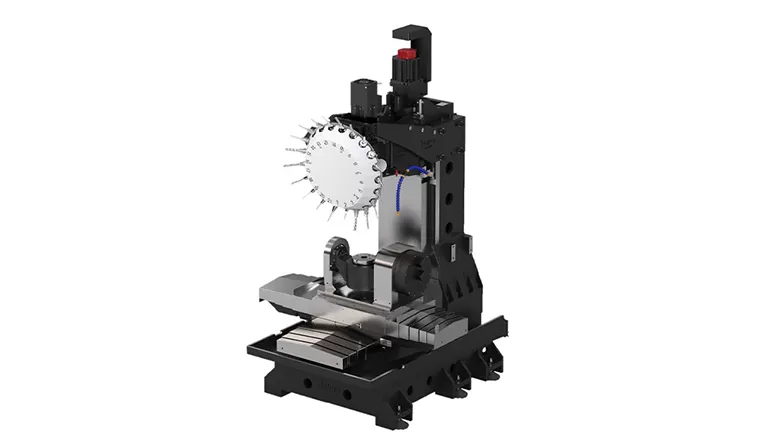

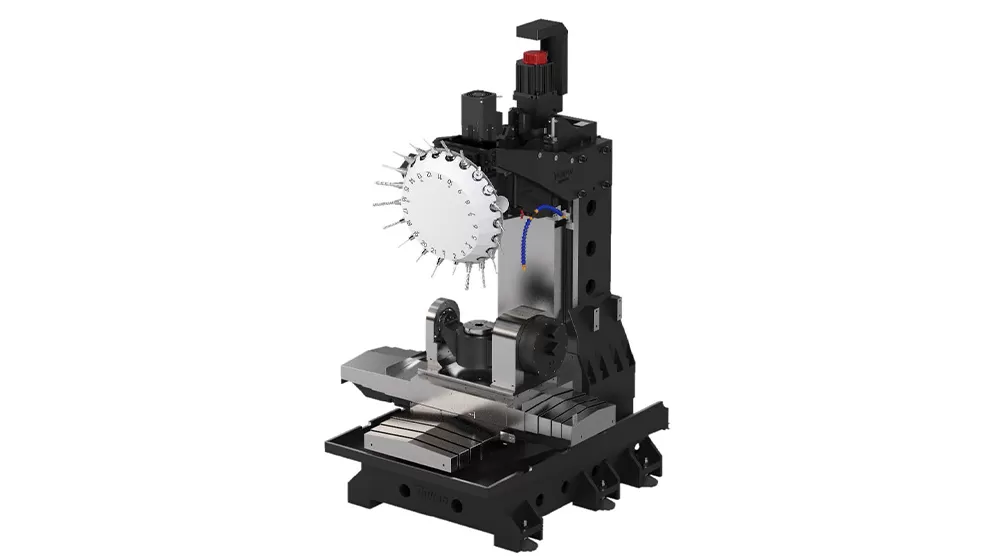

Stable structure

The base structure adopts 6 supporting feet through digital analysis and special design.
The cast iron adopts Meehanite casting process and is completely heat treated to eliminate internal stress, greatly improving the rigidity and vibration resistance of the machine, ensuring good stability during high-speed or heavy cutting process.
The machine tool adopts a modular design and can be serialized and customized according to market demand.

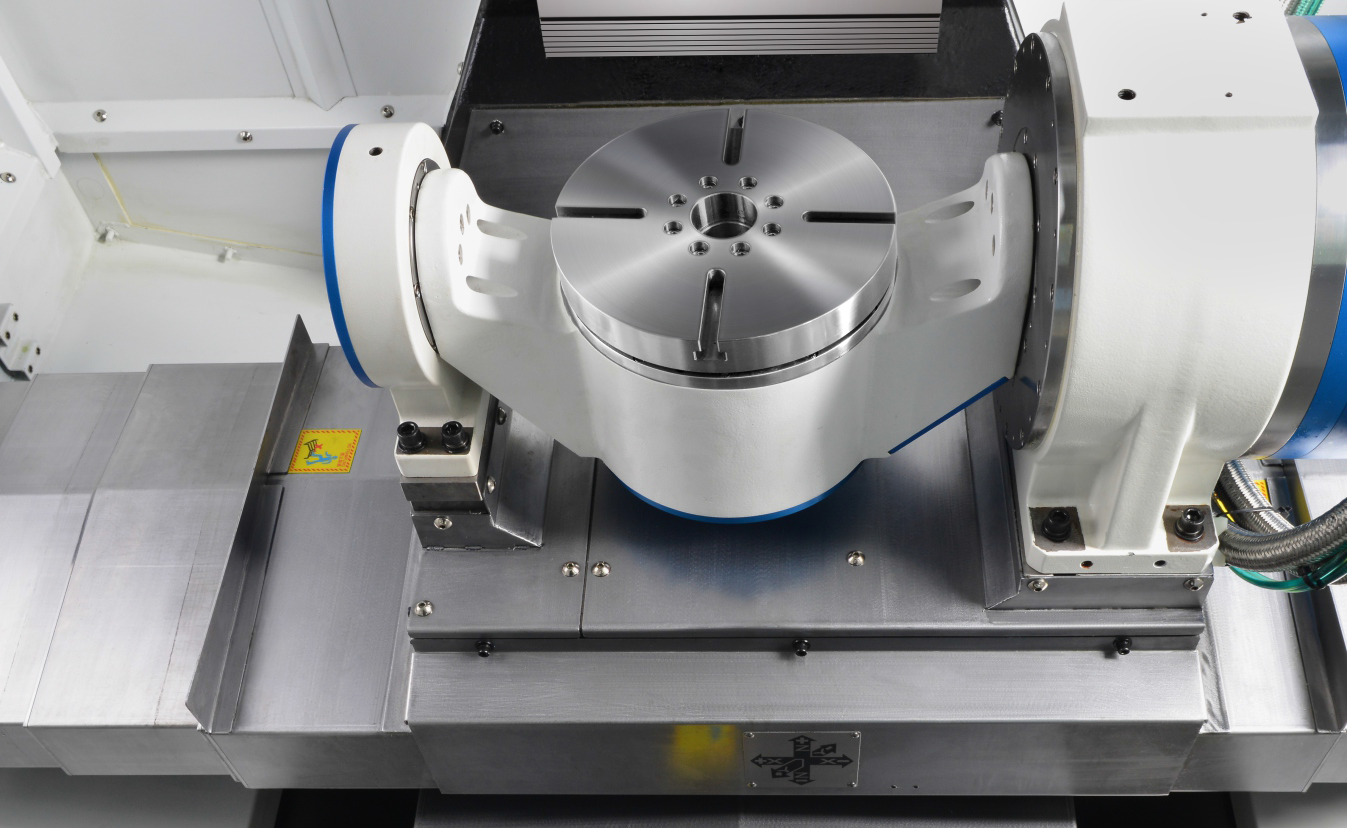

High-speed rotary table

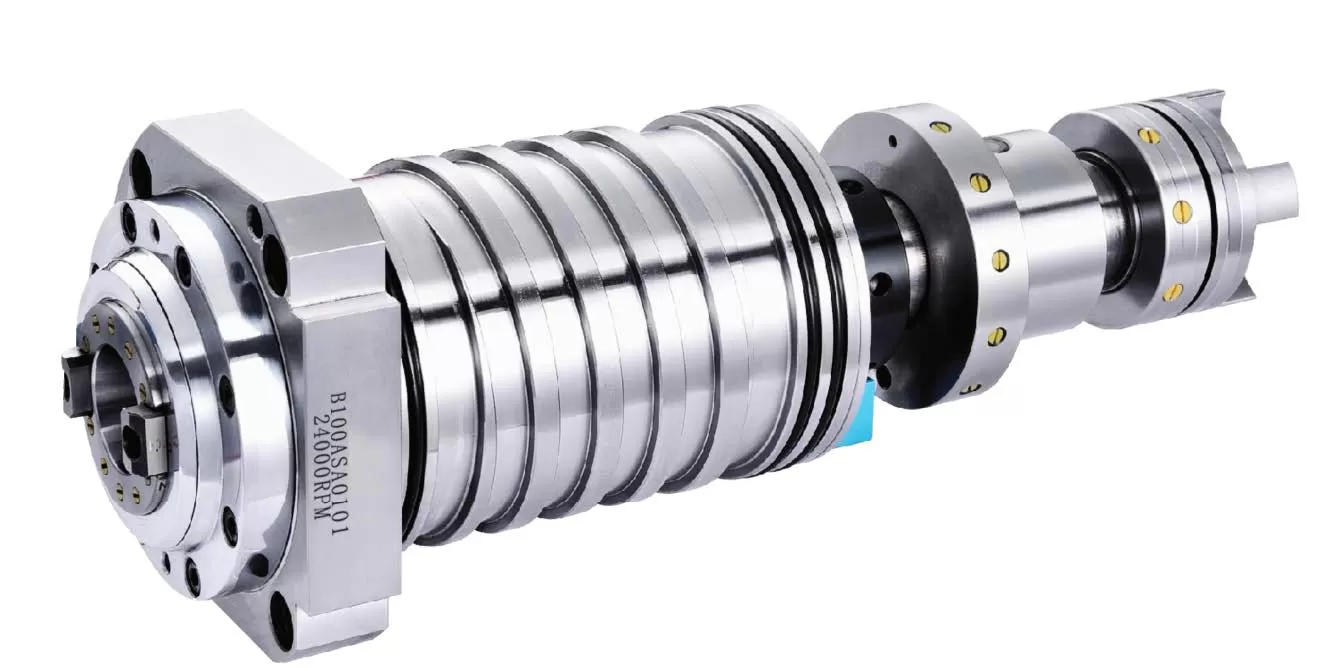

Self-developed high-speed spindle

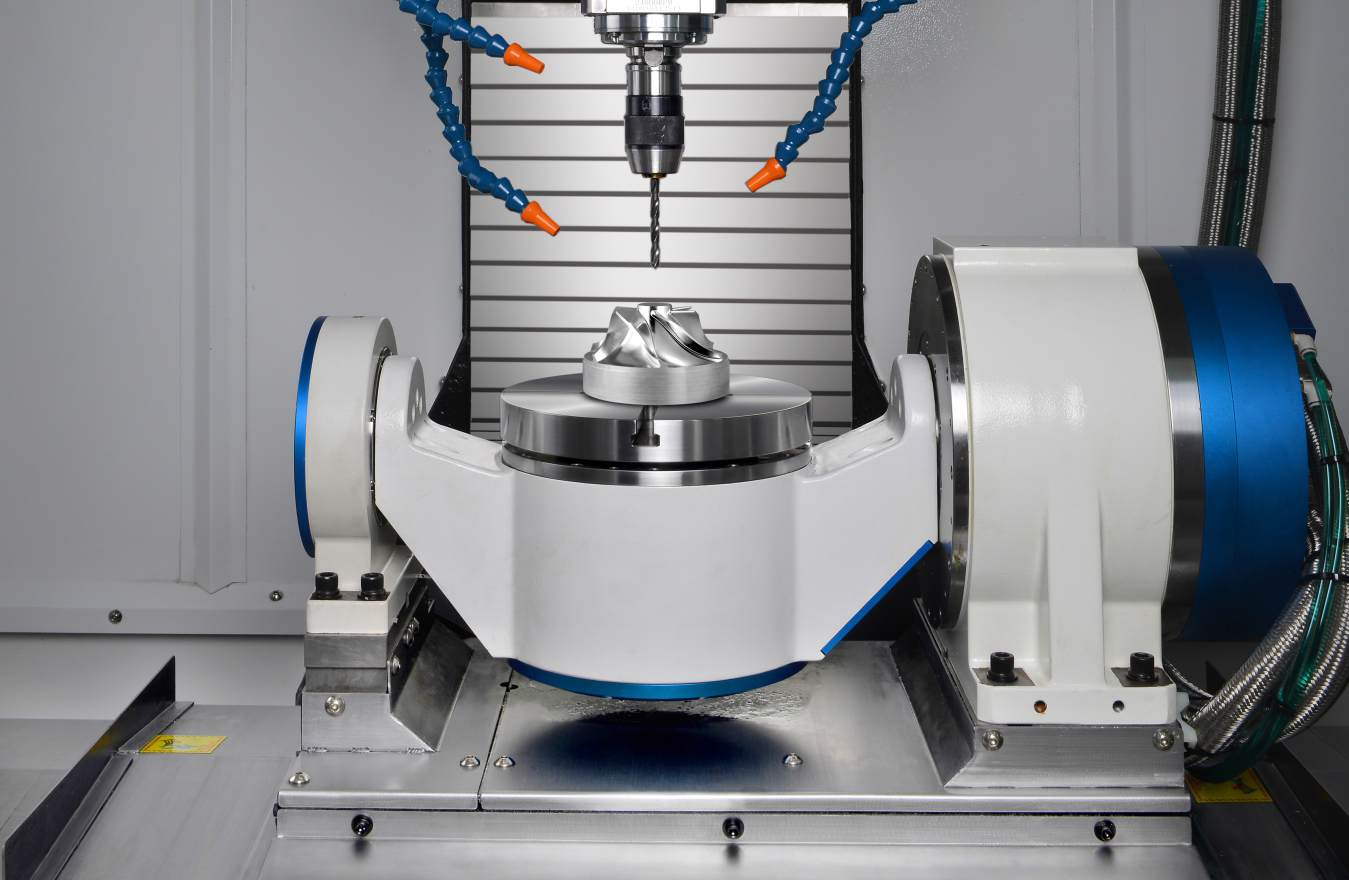

Modular design

content is empty!

NAME			UNIT	Spec.	Notes
Travel range	Table travel (X-axis)		mm	500
	Saddle travel (Y-axis)		mm	400
	Headstock travel (Z-axis)		mm	350
	Distance from spindle nose to table surface		mm	60～410
	Distance from spindle center to column guide rail mounting surface		mm	474
Rotary Table	Drive type		/	Double Dd torque rotary table
	Rotary table size		mm	Φ200
	Max. machining diameter		mm	Φ350
	Number of T-type worktables - width		mm	4*12
	Rotary table load capacity		kg	Vertical 35 / Horizontal 45
	Rated power (A/C)		kW	3.29/0.975
	Tilting angle		°	±110
	Max. speed (A/C)		rpm	250/250
	Rated torque (A/C)		N.m	105/35.5
Spindle	Motor Power (Rated/Short-Time)		kW	3.7/5.5
	Motor Torque (Rated/Short-Time)		N.m	11.6/17.4
	Spindle Motor Speed		rpm	20-24000
	Spindle Diameter		mm	Ф100
	Spindle Taper		/	BT30
Speed	Cutting Feed Rate Range		mm/min	1-15000
Speed	X/Y/Z Axis Rapid Speed		m/min	48/48/48
Accuracy	Positioning accuracy (X/Y/Z)		mm	0.006	GB/T18400.4 （Full travel）
	Repeatability (X/Y/Z)		mm	0.004	GB/T18400.4 （Full travel）
	Positioning accuracy (A/C)		arcsec	±10
	Repeatability (A/C)		arcsec	5
Tool magazine	Tool magazine capacity		T	21
	Max. tool weight		kg	3
	Max. tool length		mm	300
	Max. diameter (full/adjacent empty tool)		mm	Ф60/Ф80

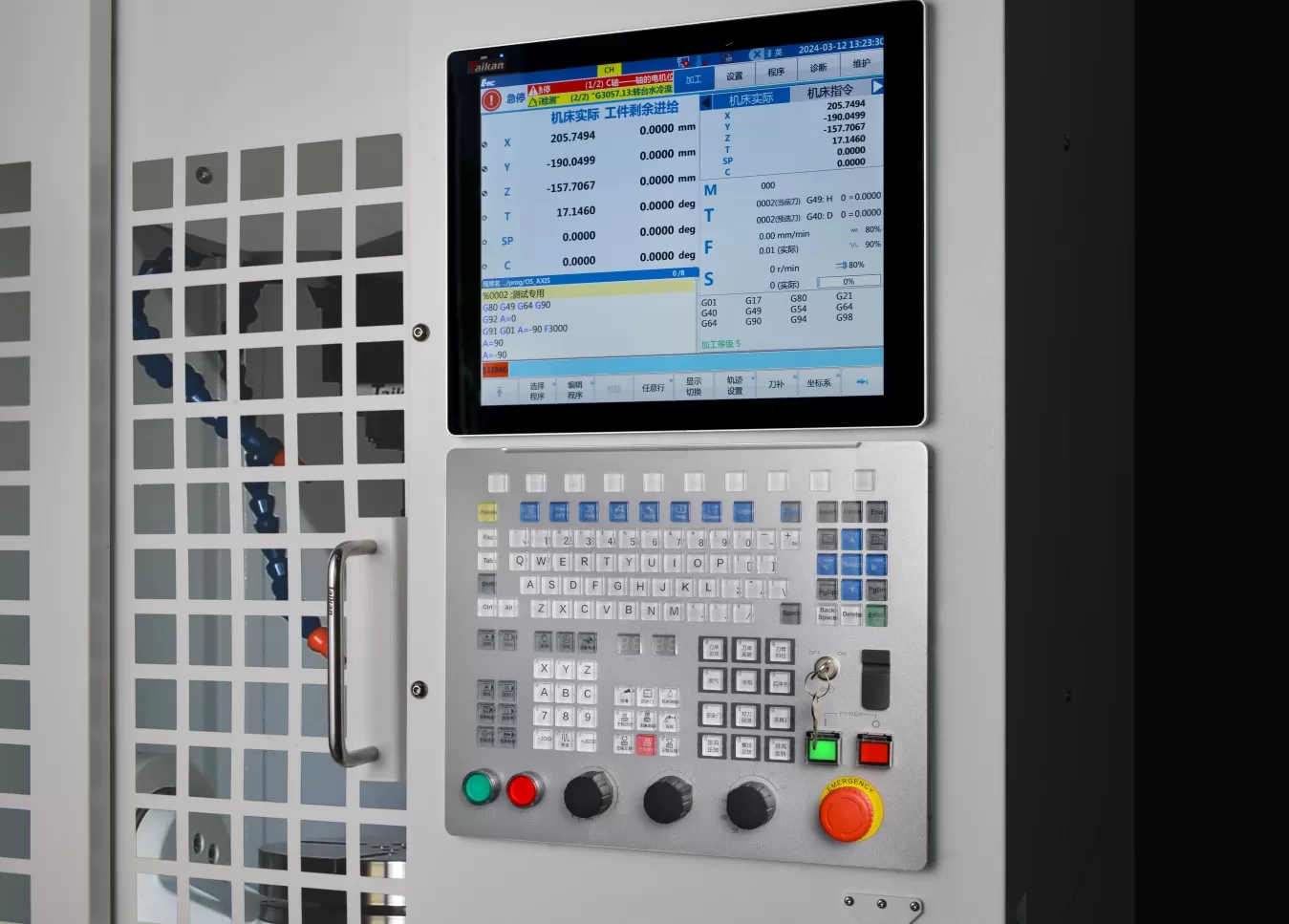

Others	CNC system			Huazhong 848D System	Package B
	Air source	Flow rate	L/min	≥200（ANR）
	Air source	Air pressure	MPa	0.6-0.8
	Equipment capacity		kVA	20
	Max. coolant tank capacity		L	145
	Machine dimensions		mm	170024202520	Corresponding to the XYZ axes
	Main weight (approx.)		kg	3300
