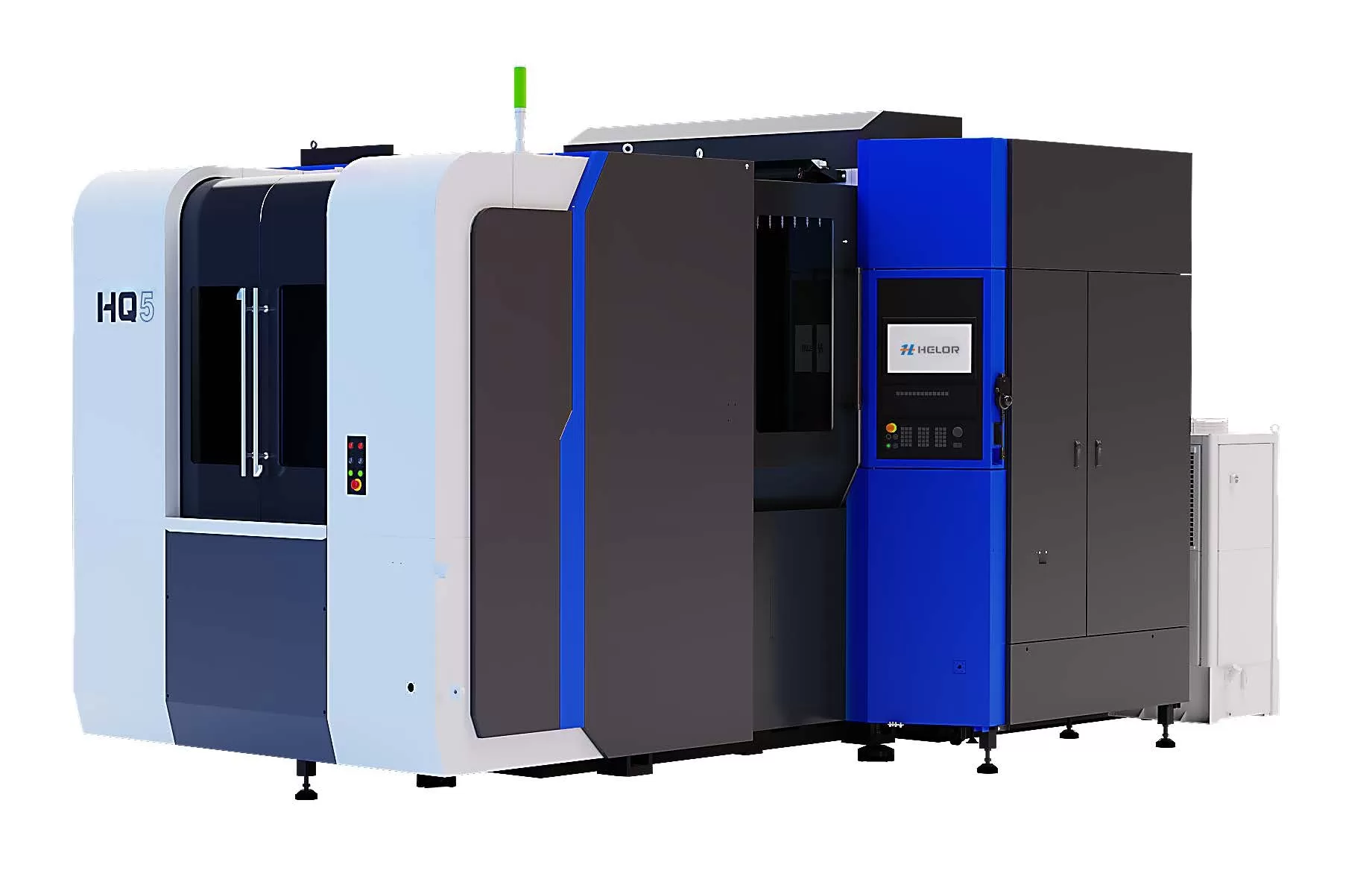

Home » Products » Horizontal Machining Center » HHQ5 High Rigidity Horizontal Machining Center

Product Category

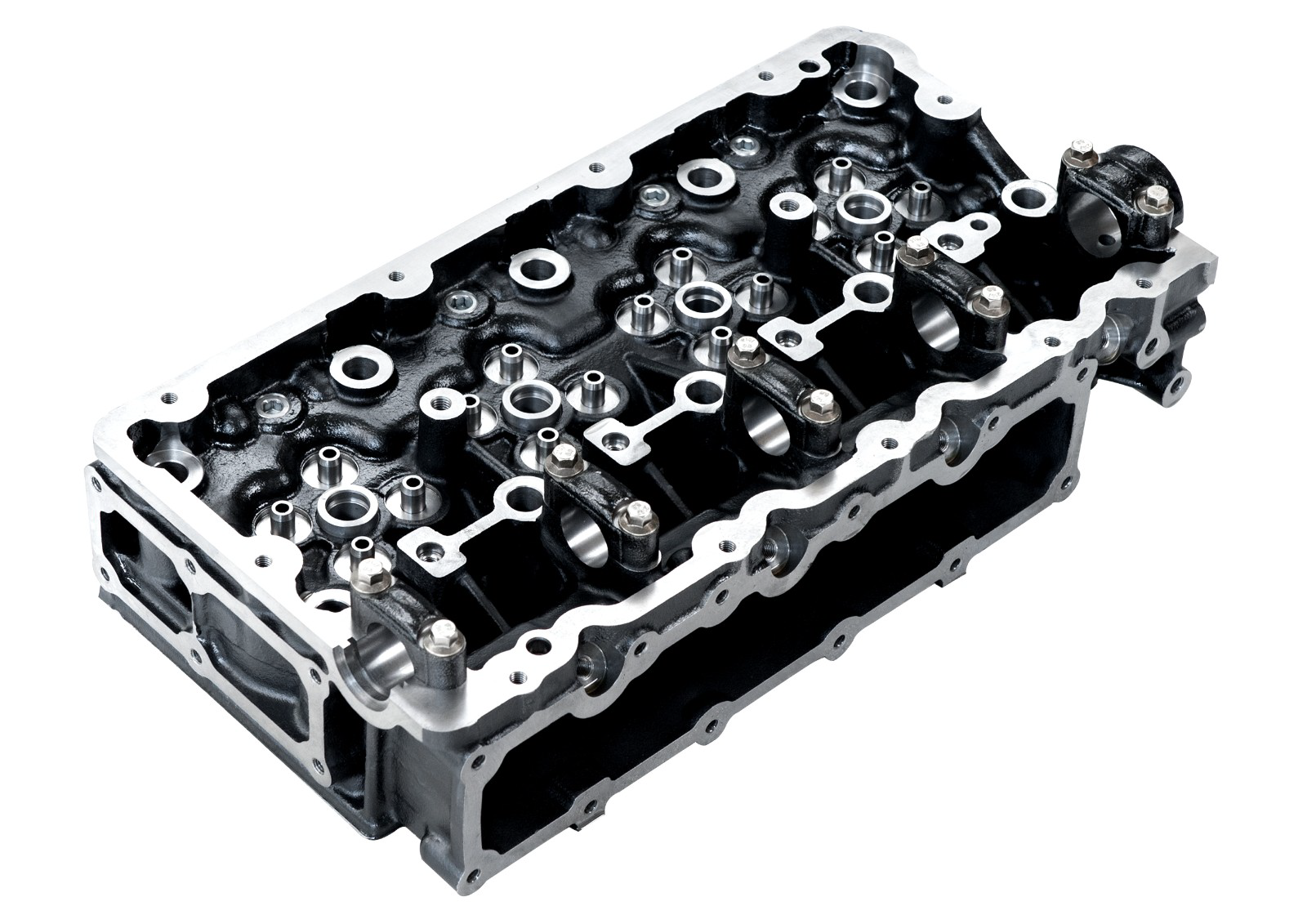

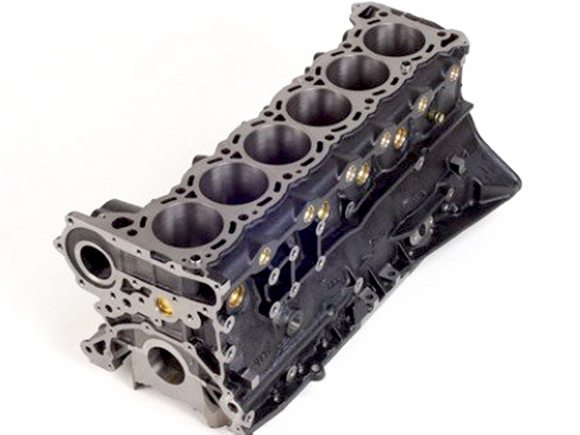

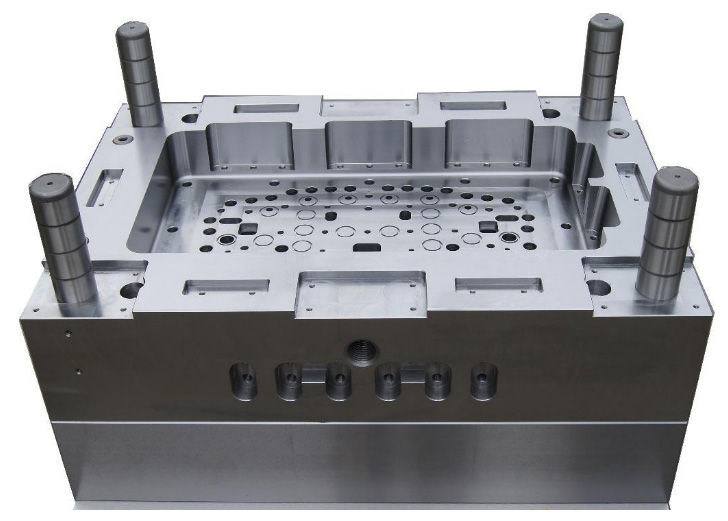

Specifically designed for heavy cutting applications such as cast iron and steel parts

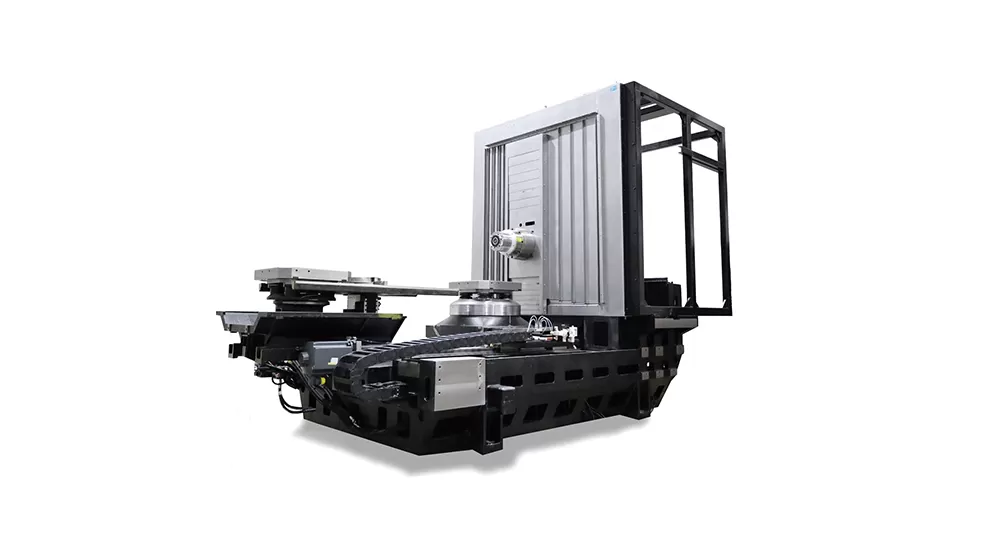

High-rigidity structure

T-shaped integrated casting bed
Thermosymmetric shape
Stepped column, lightweight, high rigidity
Stepped guide rail surface configuration, lighter column, shorter force closed-loop

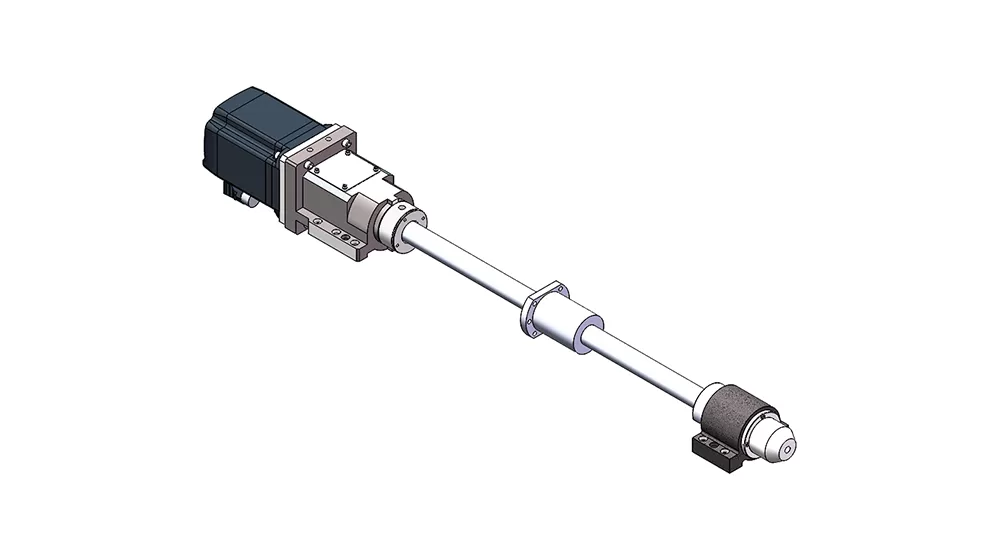

Guide rail lead screw

Spindle

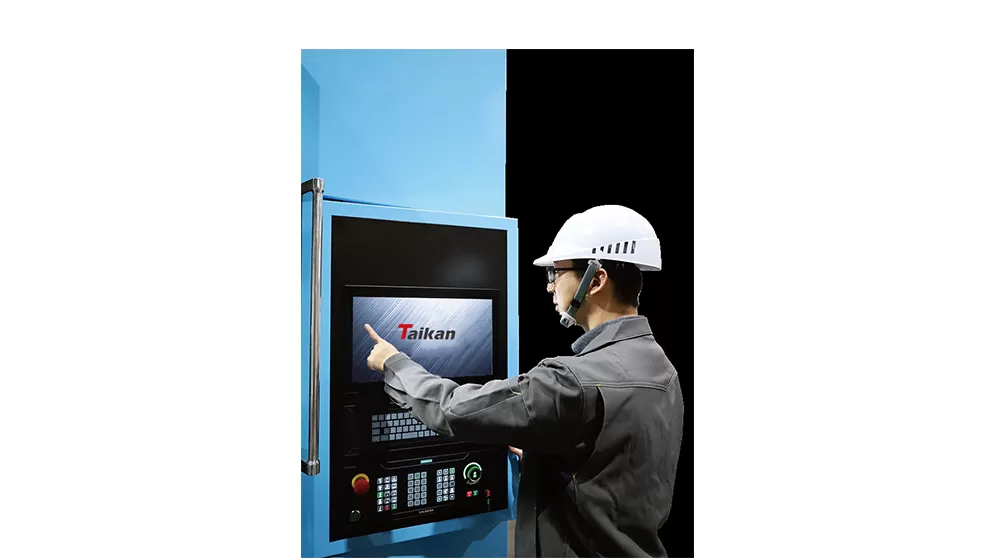

CNC system

	Name	Unit	Spec.	Remarks
	CNC System		Siemens 828D
Travel	X/Y/Z	mm	750/750/800
	B Axis	°	360
	Distance from Spindle End Face to Table Center	mm	150-950
	Distance from Spindle Center to Table Surface	mm	120-870
	Max. Workpiece Size	mm	φ850×1000
Table	Table Size	mm	500*500(2 pcs)
Table	Table Load Capacity	Kg	800
Spindle	Spindle Power (S1/S6)	Kw	22/37
	Spindle Torque (S1/S6)	Nm	122/205
	Max. Speed	r/min	15000
	Tool Holder Spec.	-	HSK-A63
Speed	X, Y, Z axis rapid speed	m/min	60/60/60
Speed	X, Y, Z axis cutting feed	mm/min	1~50,000
Accuracy	Positioning accuracy (X/Y/Z)	mm	0.01 0.006(Full Closed Loop)	VDI3441
	Repeatability (X/Y/Z)	mm	0.006 0.004(Full Closed Loop)	VDI3441
	Positioning accuracy (B)	arcsec	8（(Full Closed Loop)	VDI3441
	Repeatability (B)	arcsec	6(Full Closed Loop)	VDI3441
Tool magazine	Tool magazine capacity	T	40
	Tool length	mm	500
	Tool diameter (full/adjacent empty)	mm	80/150
	Max. tool weight	Kg	12
Others	Total electrical capacity	KVA	57
	Machine height	mm	3205
	Machine external sizes (length * width)	mm	6025×3985
	Total weight (approx.)	Kg	17,000
